How Should a Drone Battery Be Selected for Industrial UAVs?
A Drone Battery is not simply an energy storage component placed inside an aircraft. Its discharge capability, capacity, dimensions, packaging, electrical output, thermal behavior, and connection with the propulsion system can all influence UAV operation. For industrial and FPV applications, battery selection needs to reflect the aircraft's motor system, ESC configuration, operating load, available installation space, and expected working conditions. Pouch cells and smart battery packs can serve different integration needs, while customized size, shape, capacity, and discharge configurations can address non-standard aircraft designs. A structured selection process helps buyers evaluate power requirements and battery compatibility before confirming the final configuration.
Table of Contents
Click a chapter to move directly to the corresponding section.
- 1. What Role Does the Battery Play in a UAV Power System?
- 2. How Should Battery Capacity Be Matched to UAV Requirements?
- 3. Why Is Discharge Capability Important?
- 4. How Do Pouch Cells and Smart Packs Differ?
- 5. Why Do Battery Dimensions and Shape Matter?
- 6. How Should Battery Integration Be Planned?
- 7. What Testing Helps Evaluate Battery Consistency?
- 8. Which UAV Applications Need Specialized Battery Configurations?
- 9. What Should Buyers Check Before Selecting a Battery?
- 10. When Is a Custom Battery Configuration Appropriate?
- 11. How Does Battery Manufacturing Affect System Consistency?
- 12. Frequently Asked Questions
What Role Does the Battery Play in a UAV Power System?
The battery is one of the central elements of a UAV power architecture because it supplies the electrical energy required by the propulsion system and other connected equipment. Its characteristics affect how the aircraft responds to load, how the power system is packaged, and whether the selected configuration is compatible with the available space.
It is easy to reduce battery selection to one number, such as capacity. In a real aircraft, however, multiple parameters interact. A battery may have sufficient nominal capacity but still be unsuitable because it cannot deliver the required current, does not fit the battery compartment, changes the aircraft's balance, or does not match the electrical requirements of the motor and ESC system.
This is especially relevant when the aircraft carries additional equipment. A payload can increase the electrical demand of the propulsion system, while added electronics can create another power requirement. As a result, the battery should be evaluated as part of the complete aircraft configuration rather than as a separate accessory.
Electrical Output The battery must provide electrical output compatible with the intended aircraft power architecture and operating load.
Physical Integration Battery dimensions, shape, connectors, and installation position should correspond to the aircraft structure and available space.
Operating Conditions Temperature, vibration, load changes, and repeated operation can all influence how the power system should be configured.
Battery selection starts with the complete aircraft
The aircraft's motor system provides one of the clearest starting points. Motor characteristics, propeller selection, total aircraft mass, and expected operating load establish the electrical demand that the battery must support. The ESC then provides the electronic connection between the battery-side power source and the motors.
For an industrial UAV, this relationship can become more complex because the aircraft may carry equipment that changes both total mass and electrical demand. A battery selected only from an aircraft's empty configuration could produce an unrealistic result once the operating payload is introduced.
- Review the complete aircraft mass rather than the empty aircraft alone.
- Consider motor and ESC requirements together with the battery.
- Include connected equipment in the overall electrical assessment.
- Check available battery space before confirming the physical package.
- Consider expected temperature and operating conditions when defining the configuration.
Core principle A suitable UAV battery configuration is the result of matching electrical requirements, mechanical constraints, and operating conditions. Capacity alone is not enough to define suitability.
How Should Battery Capacity Be Matched to UAV Requirements?
Battery capacity describes how much electrical charge a battery can provide under defined conditions. In UAV applications, capacity is important because it is connected to the aircraft's operating demand and the required working profile. However, selecting the largest available capacity is not automatically the best technical solution.
A higher-capacity pack generally adds more cell mass and physical volume. That added mass can increase propulsion demand, which changes the system's electrical requirements. The final configuration therefore needs to balance capacity against aircraft mass, installation space, discharge capability, and operating objectives.
Capacity should be considered with aircraft load
Suppose an aircraft is designed to carry a specialized device. The device adds mass and may also require its own electrical connection. Both changes can influence the propulsion system. The battery then needs to support the revised aircraft configuration rather than the original unloaded design.
The same principle applies to FPV platforms. A compact frame may have limited installation space, while its operating profile can demand substantial electrical output over a short period. In that situation, the physical package and discharge characteristics may become more important than simply increasing capacity.
| Parameter | What It Describes | Why It Matters in UAV Selection |
|---|---|---|
| Capacity | The amount of charge available from the battery under defined conditions | Influences the usable energy available to the aircraft power system |
| Discharge Capability | How effectively the battery can deliver current under load | Important for propulsion systems with high instantaneous electrical demand |
| Physical Size | Overall battery dimensions and package geometry | Determines whether the pack can be installed within the available aircraft space |
| Weight | Mass of the complete battery package | Contributes directly to total aircraft mass and load requirements |
| Packaging | Cell arrangement, enclosure, connections, and structural format | Affects integration, access, protection, and space utilization |
A practical capacity assessment
Before a battery is selected, the project team should identify the aircraft's power demand and expected operating conditions. That information should then be considered with the available installation area and the acceptable battery mass.
For professional projects, it can be useful to separate the discussion into electrical and mechanical requirements. The electrical side addresses voltage, capacity, discharge, and connection. The mechanical side covers length, width, thickness, shape, fixing points, cable routing, and access.
When these two sides are reviewed together, the resulting configuration is more likely to fit the actual aircraft rather than simply satisfy an isolated numerical target.
Why Is Discharge Capability Important?
Discharge capability determines how effectively a battery can supply current when the aircraft places a strong electrical demand on the power system. This becomes particularly important during demanding propulsion conditions, rapid changes in power requirement, or applications where high output is required from a compact package.
Different UAVs create different electrical profiles. A lightweight aircraft used for a relatively stable operating pattern may not have the same power requirements as an FPV platform that places greater emphasis on rapid response. Industrial aircraft carrying additional equipment can also create high propulsion demands because the motors must support a larger complete system mass.
Understanding C-rate in context
C-rate is a useful way to describe discharge capability relative to battery capacity. However, it should not be interpreted as a standalone quality indicator. A high C-rate does not automatically mean that a particular battery is the correct choice for every UAV.
A suitable discharge configuration should be considered together with the aircraft's motor system, ESC configuration, actual operating current, battery capacity, physical package, and thermal conditions.
High current demand
Applications with demanding propulsion requirements may need a configuration capable of delivering substantial current while maintaining appropriate electrical behavior under load.
Compact packaging
When installation space is limited, the battery may need a carefully planned cell arrangement to combine required output with a practical physical package.
Why the motor and ESC matter
The motor establishes much of the propulsion demand, while the ESC manages the electrical output supplied to that motor. If the battery is selected without considering these components, the resulting configuration may not match the aircraft's actual operating requirements.
This is why a battery supplier with knowledge of UAV motors and ESCs can provide more useful technical input for integrated projects. The battery can be evaluated together with the rest of the propulsion architecture instead of being specified in isolation.
Available configurations can range from 1C to 160C according to application requirements. The appropriate value should always be determined from the actual aircraft and operating conditions rather than selected from the C-rate alone.
High-discharge does not remove the need for thermal evaluation
Higher electrical output can increase thermal demands within the battery and the broader power system. Temperature affects materials, electrical characteristics, and operating behavior, so high-output applications should include appropriate thermal considerations during development.
The final objective is a balanced system in which battery output, motor demand, ESC capability, physical packaging, and environmental conditions are technically aligned.
How Do Pouch Cells and Smart Packs Differ?
Battery format can influence both physical integration and system management. Pouch batteries and smart battery packs can serve different application needs, so the choice should be based on the aircraft architecture rather than on a simple preference for one format.
Pouch battery configurations
Pouch cells are useful where flexibility in battery shape and packaging is important. Compared with rigid cylindrical arrangements, pouch-based designs can offer greater freedom when the available installation area has unusual dimensions.
This can be beneficial for compact UAV structures, thin battery compartments, or equipment layouts where conventional battery geometry creates wasted space. The final packaging still needs appropriate protection, electrical connection, and mechanical support.
Smart BMS battery packs

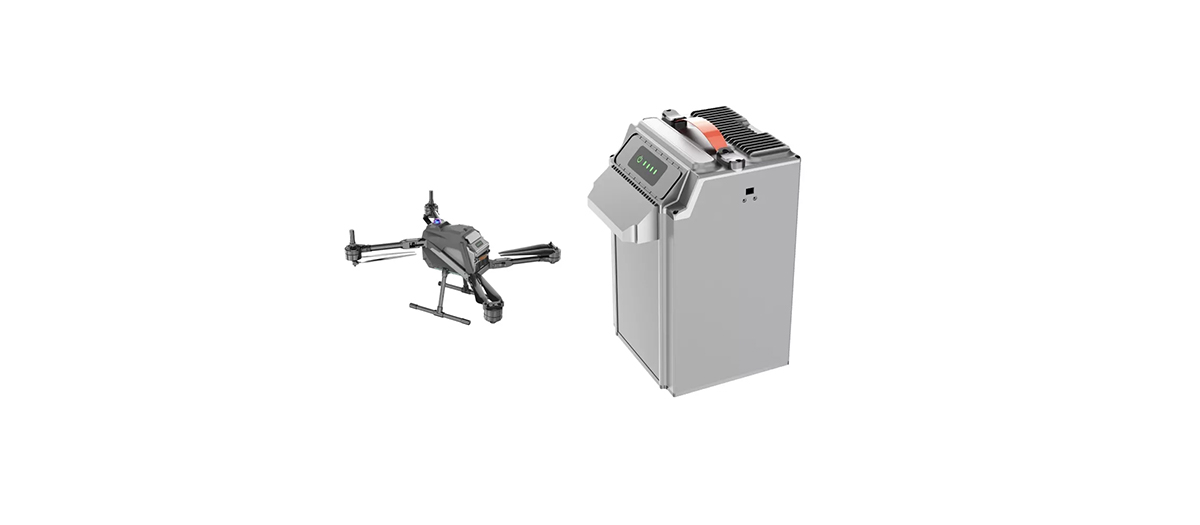

A smart battery pack adds battery management functions that can support monitoring and management requirements. Depending on the system, these functions can provide information and control related to battery status and operating conditions.
This type of configuration can be useful when the aircraft system needs additional battery information for operation or maintenance. The required communication and management functions should be defined according to the aircraft electronics and system architecture.
| Battery Format | Main Characteristic | Potential Application Advantage |
|---|---|---|
| Pouch Configuration | Flexible cell arrangement and packaging options | Useful where battery shape, thickness, and available installation space are important |
| Smart BMS Pack | Includes battery management and monitoring functions | Suitable for systems requiring additional battery status and management information |
Format selection should follow the aircraft architecture
A compact FPV drone may prioritize packaging and high discharge capability. A professional industrial aircraft may place greater importance on battery monitoring, system integration, special dimensions, and defined maintenance requirements.
Neither format should be treated as universally better. The correct choice depends on the aircraft, power architecture, physical installation area, operating profile, and system-level requirements.
Important distinction Cell format describes how the battery is built and packaged. It does not, by itself, determine whether the complete battery configuration is suitable for a particular UAV.
Why Do Battery Dimensions and Shape Matter?
Physical dimensions can be just as important as electrical specifications when a battery is installed inside a UAV. Aircraft structures often have fixed compartments, narrow spaces, structural supports, or equipment interfaces that restrict the available volume.
A battery that meets the electrical requirements but cannot be installed correctly does not solve the project's power problem. For this reason, length, width, thickness, connector location, cable direction, and fixing method should be reviewed during battery selection.
Battery shape can influence aircraft layout
Traditional battery packages are often easier to design when the aircraft has a simple rectangular compartment. More specialized UAVs may have curved structures, narrow internal spaces, or dedicated equipment areas. In those situations, a customized battery shape can help use available space more efficiently.
Ultra-thin configurations are another example. When the aircraft structure leaves limited vertical clearance, reducing battery thickness can simplify mechanical integration. The electrical configuration still needs to satisfy the aircraft's requirements, so the change must be evaluated as a complete design rather than as a purely dimensional modification.
- Length and width: Determine whether the pack fits the designated installation area.
- Thickness: Becomes important when clearance between structural layers is limited.
- Shape: Can be adapted around non-standard compartments and equipment layouts.
- Connector position: Influences cable routing and access during installation.
- Fixing method: Should provide a stable and practical installation arrangement.
Space constraints can affect the complete power architecture
Battery placement influences more than packaging. Position affects the aircraft's mass distribution and can change the relationship between the battery, center of gravity, structural members, and other equipment.
A good battery configuration therefore considers where the pack will sit, how it will be secured, how cables will be routed, and whether technicians can access it during normal maintenance. These details become increasingly important as the aircraft becomes more specialized.
How Should Battery Integration Be Planned?
Battery integration should begin before the final battery package is manufactured. The aircraft structure, propulsion system, connectors, equipment layout, and power requirements should be reviewed together so that the battery design reflects the complete system.
A practical integration process starts with technical information. This can include battery compartment dimensions, required voltage, capacity range, expected current, discharge characteristics, connector requirements, installation method, and environmental conditions.
Step 1: Define the electrical requirement
Determine the electrical characteristics required by the aircraft and propulsion system. The motor and ESC architecture should be included because the battery must support their operating conditions.
Step 2: Define the physical envelope
Measure the available battery space and identify restrictions around length, width, thickness, cable routing, connectors, and structural supports. This creates the physical boundary for the battery package.
Step 3: Consider the complete aircraft load
Include propulsion components, batteries, payloads, electronics, structural parts, and other connected equipment when reviewing mass distribution. A battery should be evaluated in the actual aircraft configuration rather than as an independent component.
Step 4: Review operating conditions
Identify the expected temperature, vibration, impact exposure, and operating pattern. These factors help determine which tests and design considerations should be included during validation.
Step 5: Confirm interfaces
Review connectors, wiring, communication requirements, installation method, and maintenance access. Clear interface information can reduce the chance of discovering compatibility issues after production.
Aircraft Provides the physical and structural framework for battery installation.
Propulsion Determines important electrical requirements through motor and ESC behavior.
Equipment May add mass, power consumption, and additional installation constraints.
System integration is particularly important for customized UAVs. When the battery is designed around the aircraft from the beginning, it is easier to coordinate electrical requirements with mechanical packaging and equipment placement.
What Testing Helps Evaluate Battery Consistency?
Battery consistency begins before cell assembly. Cell selection and matching influence the quality of the finished pack, while welding, packaging, aging, and rate testing provide additional opportunities to examine the assembled product.
For professional UAV applications, testing should be connected to clearly defined conditions. The goal is to understand whether a battery configuration performs consistently within its specified operating requirements.
| Testing or Process Area | What It Evaluates | Role in Battery Production |
|---|---|---|
| Cell Sorting | Internal resistance, voltage, and capacity characteristics | Helps establish more consistent cell groups before pack assembly |
| Precision Laser Welding | Cell and electrical connection quality | Supports controlled assembly of the battery structure |
| Battery Packaging | Cell arrangement and final physical configuration | Creates the dimensions and shape required by the target application |
| Charge-Discharge Aging | Behavior during defined charging and discharging cycles | Provides process information about the assembled battery |
| Rate Testing | Battery behavior under defined discharge conditions | Supports evaluation of configurations intended for different current demands |
Why cell matching matters
A battery pack is assembled from individual cells, so variations between cells can influence the behavior of the complete pack. Automatic sorting that evaluates internal resistance, voltage, and capacity can help group cells with more consistent characteristics before assembly.
This step is particularly relevant when battery performance needs to remain consistent across repeated production. It creates a defined process for evaluating the cells instead of relying only on the finished pack.
Why aging and rate testing matter
Charge-discharge aging provides a controlled way to evaluate the assembled battery through defined operating cycles. Rate testing can then provide information about behavior under specified discharge conditions.
The exact test parameters should be established according to the battery design and application. Testing should support a known engineering requirement rather than being presented as a generic quality label.
Documentation and market requirements
For applicable battery products, CE and UN38.3 documentation can support relevant market and transportation requirements. The exact documents required depend on the battery product, destination, transport method, and applicable regulations.
Which UAV Applications Need Specialized Battery Configurations?
Different aircraft place different demands on the power system. A compact FPV platform, an industrial UAV, and a specialized robotic aircraft may all require batteries with different combinations of capacity, discharge capability, shape, and management functions.
Industrial UAVs Professional aircraft may require specific capacity, dimensions, discharge characteristics, and integration arrangements.
FPV Drones FPV applications can place greater emphasis on high discharge capability, response under load, and compact battery packaging.
Specialized UAV Equipment Non-standard installation spaces may require custom battery size, shape, capacity, or output characteristics.
Industrial UAV applications
Industrial aircraft often have defined equipment requirements and more structured operating conditions. The battery may need to support a larger platform while fitting around structural elements, electronic systems, and installed equipment.
In these cases, battery selection should focus on system compatibility. A suitable configuration may require a specific package shape or discharge profile rather than an off-the-shelf format.
FPV applications
FPV aircraft can emphasize compact packaging and strong current delivery. Their electrical demand can change rapidly according to the operating style, propulsion configuration, and aircraft setup.
For this category, C-rate can be an important specification, but it still needs to be interpreted alongside capacity, actual current demand, battery mass, and physical dimensions.
Robots and mobile equipment
The same battery technology can also support robots, AGVs, and other specialized mobile equipment. These systems may have compact installation spaces and high-output requirements similar to some UAV applications.
The ability to adapt battery dimensions and packaging can therefore be useful beyond aerial systems. A project may require an unusual shape because the battery compartment has been determined by motors, electronics, structural parts, or other equipment.
- Aircraft platforms: Match the battery to propulsion and operating load.
- FPV systems: Prioritize suitable discharge capability and compact packaging.
- Robotic equipment: Consider both electrical output and installation constraints.
- Customized systems: Define shape, size, capacity, and discharge requirements around the actual equipment layout.
What Should Buyers Check Before Selecting a Battery?
Battery selection becomes easier when the evaluation starts with measurable requirements instead of a generic product label. Buyers should collect enough technical information to describe both the electrical and mechanical conditions of the target UAV.
Electrical requirements
- Voltage requirement: Confirm compatibility with the aircraft electrical architecture.
- Capacity requirement: Define the capacity according to the expected operating profile and acceptable battery mass.
- Discharge requirement: Determine current demand from the motor, ESC, and actual operating load.
- Management functions: Identify whether smart battery monitoring or BMS functionality is needed.
Mechanical requirements
- Available space: Record maximum length, width, and thickness.
- Battery shape: Determine whether the compartment requires a standard or non-standard geometry.
- Connector location: Confirm connection direction and cable access.
- Mounting method: Define how the battery will be secured inside the aircraft.
Operating requirements
- Temperature: Identify the expected environmental range.
- Vibration: Consider the mechanical environment around the aircraft and battery.
- Load profile: Identify whether current demand is stable, variable, or highly dynamic.
- Usage pattern: Consider charging, discharging, maintenance, and repeated operating conditions.
Best practice The more clearly the aircraft requirements are defined before battery selection, the easier it becomes to determine whether a standard configuration is sufficient or a customized pack is more appropriate.
When Is a Custom Battery Configuration Appropriate?
Customization is useful when the requirements of the aircraft cannot be met efficiently by a standard battery package. The need for customization does not necessarily mean the entire electrical system must be redesigned. It may involve one or several specific characteristics.
Custom Size Useful when the available battery compartment has defined dimensional limits.
Custom Shape Useful when the aircraft structure requires an unusual outline or non-rectangular package.
Custom Capacity Useful when the application requires a specific capacity range rather than a standard pack size.
Special-size and space-limited designs
Some aircraft have narrow or unusually shaped internal compartments. A standard pack may occupy too much space even when its electrical characteristics are appropriate. A special-size configuration can be designed around the available area while maintaining the required electrical arrangement.
Ultra-thin batteries are another example. A thinner package can be useful where the aircraft has limited vertical clearance. However, changing dimensions should be evaluated together with cell arrangement, connections, mechanical protection, and the intended operating conditions.
Custom discharge configurations
Battery discharge requirements can also vary between projects. One aircraft may operate with relatively stable current demand, while another may require high output during dynamic flight conditions. A customized discharge configuration can be developed around the specified operating load.
The target discharge rate should be established using actual system data rather than a general assumption. Motor characteristics, ESC specifications, battery capacity, and operating load should all be part of the evaluation.
Project development should be parameter driven
A useful customization process starts with drawings, dimensions, electrical parameters, equipment information, and operating requirements. These inputs give the battery design a clear technical boundary.
Once the requirements are defined, production can focus on the relevant cell configuration, welding method, packaging design, and testing procedure. This creates a more controlled development path than changing battery dimensions without reviewing the complete UAV system.
How Does Battery Manufacturing Affect System Consistency?
Battery performance depends not only on the selected cells but also on how those cells are matched, connected, packaged, and tested. A controlled manufacturing process can help maintain consistency between the defined design and the finished pack.
- Automatic cell sorting: Individual cells are evaluated for internal resistance, voltage, and capacity so that suitable cells can be grouped for pack assembly.
- Cell arrangement: Cells are organized according to the defined electrical configuration and packaging requirements.
- Precision laser welding: Connections are formed using controlled welding processes for the battery assembly.
- Battery packaging: The assembled pack is shaped according to the required dimensions, thickness, and installation arrangement.
- Charge-discharge aging: Finished batteries are evaluated through defined charging and discharging processes.
- Rate testing: The battery is checked under specified discharge conditions relevant to the intended application.
Cell selection and matching
Cell matching is an important step because a battery pack is made from multiple individual cells. Measuring internal resistance, voltage, and capacity before assembly provides a defined basis for grouping cells.
The value of this process is not simply the presence of automated equipment. The important point is that the manufacturing workflow uses measurable parameters to support battery consistency before the pack is completed.
Precision welding and packaging
Welding connects the electrical elements of the battery assembly, while packaging determines the physical form of the finished product. For UAV applications, both areas can have a direct effect on system integration.
A battery may need to follow a specific thickness, length, or shape so that it fits around aircraft structures. Packaging therefore becomes part of the engineering solution rather than an afterthought added after electrical design.
Aging and rate testing
Charge-discharge aging provides information about the assembled battery under defined operating cycles. Rate testing examines behavior under specified discharge conditions. Together, these processes can contribute to a more structured evaluation of the finished battery.
The test conditions should be selected according to the product's technical requirements. Different battery configurations can require different validation parameters, particularly when the intended applications have different discharge profiles or installation constraints.
System-level development has an additional advantage
When battery production is considered alongside UAV motors, ESCs, aircraft structures, and other components, the power configuration can be reviewed in the context of the complete aircraft. This makes it easier to connect battery specifications with actual propulsion requirements and equipment integration conditions.
Technical takeaway Consistency is created through a chain of controlled steps, from cell sorting and matching through welding, packaging, aging, and rate testing. Each stage contributes a different part of the final battery configuration.
Frequently Asked Questions
Do you provide high-discharge UAV batteries?
Yes. Different discharge-rate configurations are available, including options from 1C to 160C. The appropriate discharge rate depends on the aircraft, propulsion system, battery capacity, and actual operating load.
Can the battery size and shape be customized?
Yes. Custom size, shape, capacity, and packaging configurations can be developed for aircraft with limited or non-standard installation space. The final configuration depends on the physical and electrical requirements of the UAV.
What is the difference between a pouch battery and a smart BMS battery pack?
Pouch-based configurations provide greater flexibility in battery shape and packaging, while smart BMS packs add battery management and monitoring functions. The appropriate format depends on the aircraft structure, electrical system, and management requirements.
How do I choose the right battery capacity for a drone?
Capacity should be selected together with the UAV's power demand, propulsion system, operating load, available installation space, battery weight, and required working conditions. These parameters should be evaluated together before the final battery configuration is confirmed.
Are pouch batteries suitable for UAV applications?
Yes. Pouch configurations can be useful where battery dimensions, thickness, shape, and packaging flexibility are important. They can be adapted to specific aircraft layouts when the design requirements call for a non-standard package.
Can a battery be developed for a specific UAV?
Yes. Project-based configurations can be developed around the aircraft's required size, shape, capacity, discharge rate, installation space, and operating conditions. Drawings and technical parameters provide a useful basis for defining the configuration.
Can batteries support robotic or mobile equipment?
Yes. The same battery technology can also support robots, AGVs, and other specialized mobile equipment where compact packaging and high electrical output are required.
What testing equipment is used during battery production?
The production process includes automatic cell sorting, precision laser welding, battery packaging, charge-discharge aging, and rate testing. Cell sorting evaluates internal resistance, voltage, and capacity before pack assembly.
Are CE and UN38.3 documents available?
CE and UN38.3 documentation is available for applicable battery products. The exact documentation required depends on the battery configuration, market, transportation method, and relevant requirements.
Need a Battery Configuration for Your UAV?
Share the aircraft power requirements, battery compartment dimensions, operating load, desired capacity, discharge requirement, or special packaging constraints for a more focused technical discussion.
contact us to discuss your battery requirements
