Heavy-Lift Multirotor Industrial Drone

The YH-M200 Heavy-Lift Multirotor Industrial Drone, manufactured by YIHANG in China, is built for moving heavy cargo where road access is limited, carrying up to 200kg with 22-minute full-load endurance. Its 4-axis 8-rotor design supports demanding mountain and remote-site operations.

Model:YH-M200

Send Inquiry

Rating: 5.0

(Rating Count: 1)

Product Description

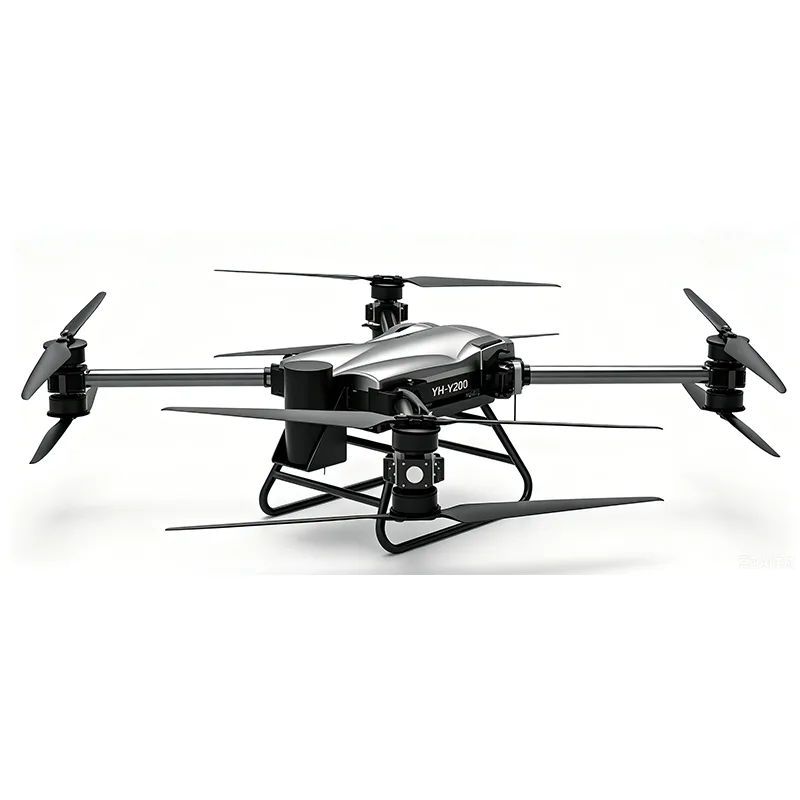

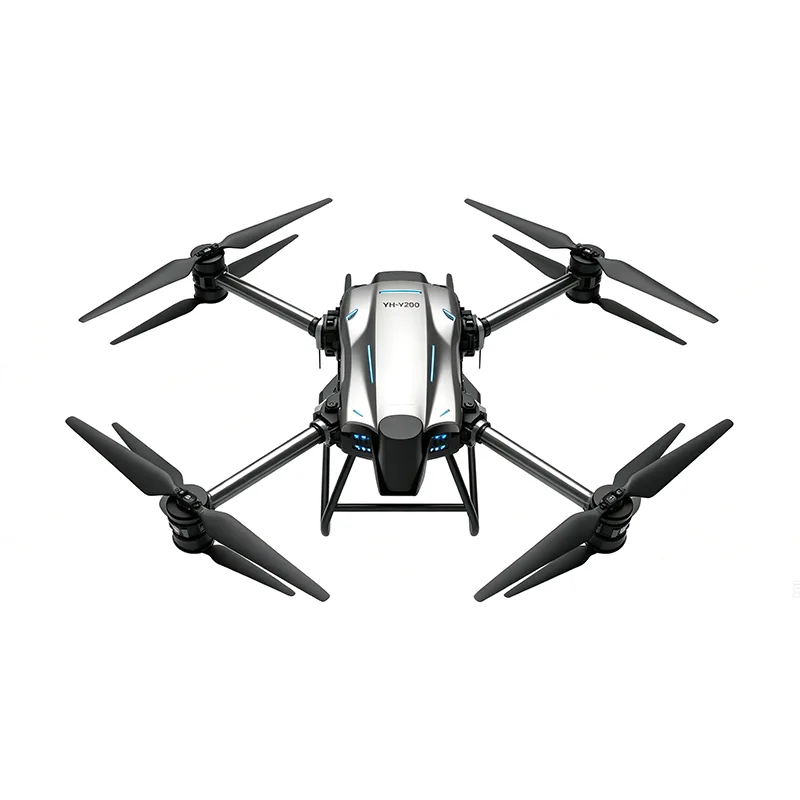

The YIHANG YH-M200 Heavy-Lift Multirotor Industrial Drone is a pure-electric multirotor platform developed for moving heavy loads in environments where conventional transport equipment is difficult to deploy. With a 200kg maximum payload, 3000mm wheelbase and symmetrical 4-axis 8-rotor configuration, the aircraft is designed to maintain stability and controlled flight while carrying substantial cargo. Its integrated power, battery, RTK and airframe systems are configured as a complete platform rather than separate components.

The YH-M200 can also be configured according to different payload and operating requirements. Payload brackets, flight parameters and battery configurations can be adjusted for specific missions, with trial units available for customer testing and field evaluation.

Technical Specifications

Classification	Detailed Information
Product Name	YH-M200 Heavy-Lift Multirotor Industrial UAV
Wheelbase	3000mm super-large frame
Payload Capacity	Standard: 180kg; Max: 200kg
Empty Weight	89kg
Flight Endurance	No-load: 60 min; Full 200kg load: 22 min

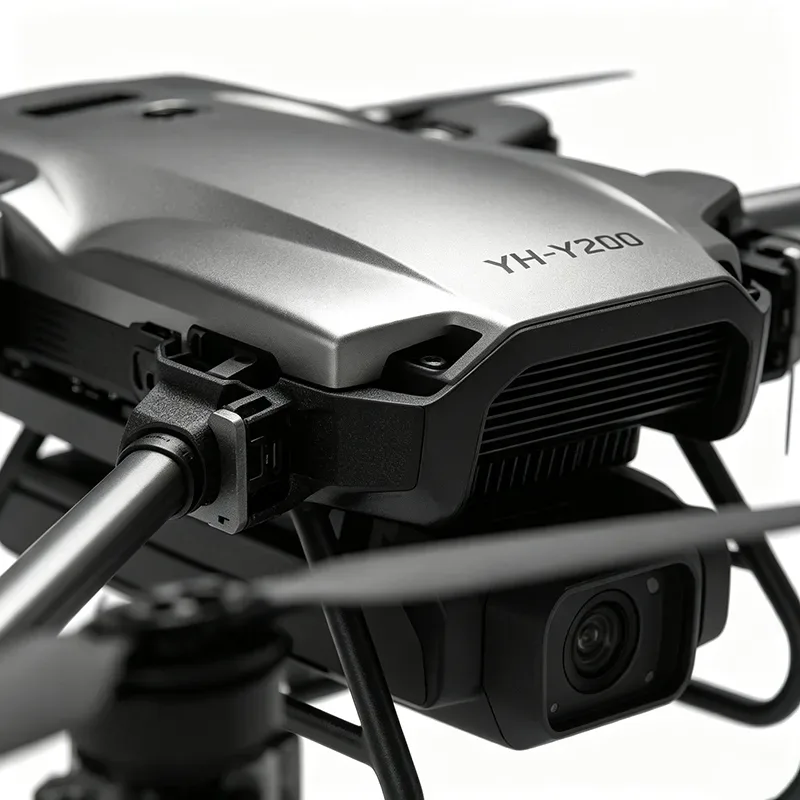

Main Fuselage Material	High-strength carbon fiber composite + CNC aviation aluminum

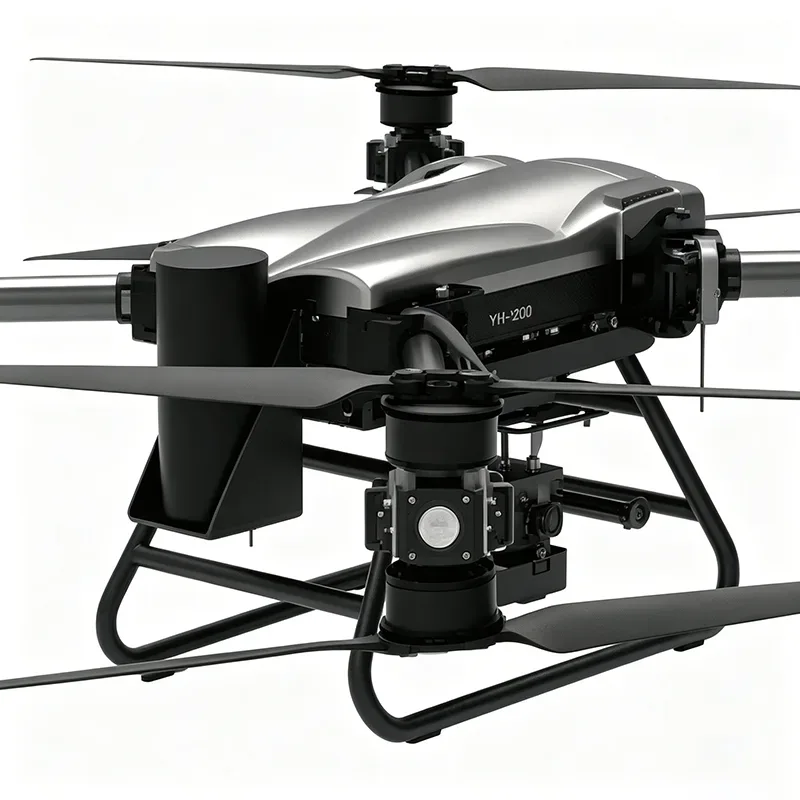

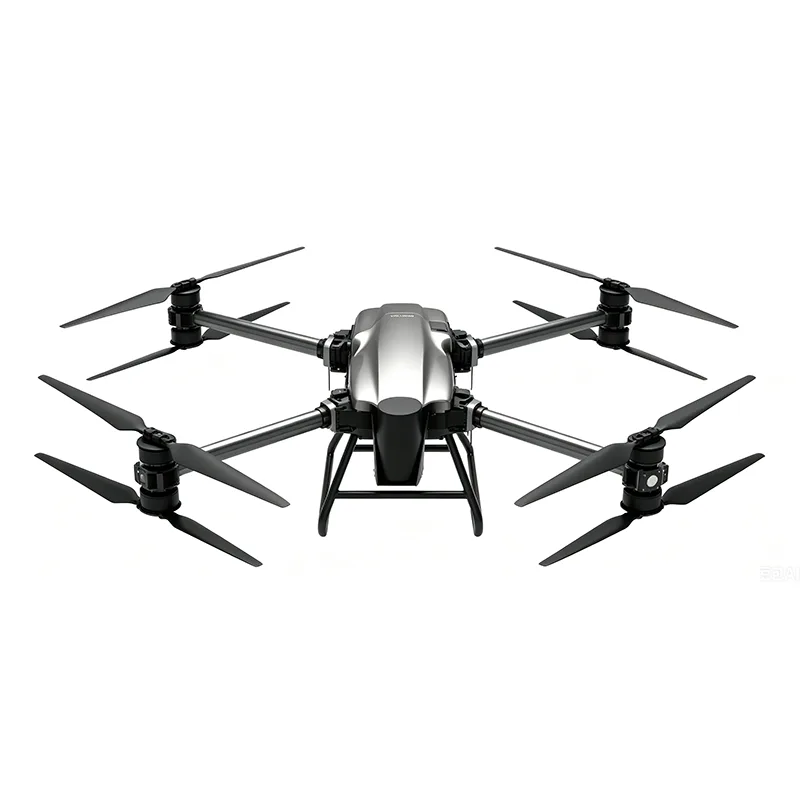

Rotor & Propeller Layout	4-axis 8-rotor symmetrical configuration, 73-inch straight aerodynamic propellers
Unfolded Size	4010×3980×860mm
Folded Size	3380×1270×1090mm
Power System	FOC full digital high-efficiency system with plateau power compensation
Max Flight Speed	20m/s
Max Operating Altitude	5000m
Wind Resistance	Level 7
Positioning System	4-mode satellite fusion (GPS/BeiDou/Galileo/GLONASS) + industrial RTK module
Static Positioning Accuracy	±0.05m
Built-in Safety Functions	Loss-of-link auto RTH, low-battery auto RTH & landing, mission resume
Matching Power Supply	Standard: high-rate NMC smart BMS pack; Upgrade: high energy density semi-solid pack. Dual CAN/RS485, UN38.3/CE/FCC certified.
Custom Services	Fuselage logo, flight control tuning, payload bracket modification, battery voltage/capacity/connector customization
Applicable Scenarios	Mountain & island logistics, emergency rescue, construction, forest fire patrol, mine surveying, power line inspection
Test Standard	Thousands of factory aging flight tests—real performance data
Sample Policy	Small quantity trial units available for customer testing & field trials
MOQ	Negotiable; single unit trial order supported
Lead Time	Negotiable
Warranty	1 year core components under standard industrial operation
Payment Terms	T/T, L/C at sight
Manufacturer	YIHANG Intelligent Technology, Xuzhou, Jiangsu, China

Key Advantages

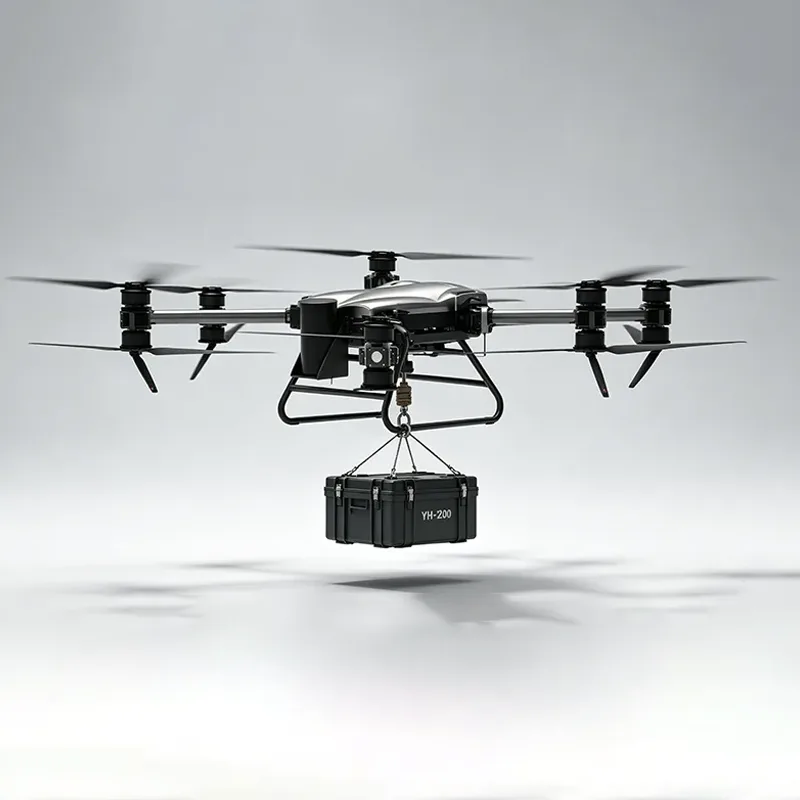

200kg Payload — Up to 22 Minutes at Full Load

The YH-M200 Heavy-Lift Multirotor Industrial Drone provides a 200kg maximum payload and 180kg standard payload. At full load, the stated flight endurance is up to 22 minutes, providing capacity for heavy cargo transport in demanding field environments.

The 4-axis 8-rotor configuration is designed to provide stable lift and flight control for heavy-load operations. The pure-electric multirotor design also allows vertical takeoff and landing without runway infrastructure.

60 Minutes No-Load Endurance

With no payload, the YH-M200 can remain airborne for up to 60 minutes under the stated conditions. This longer endurance can be used for lighter inspection, monitoring or positioning tasks, while the full-load configuration is intended for heavy cargo operations.

Actual flight time varies with payload, battery configuration, weather, altitude and flight conditions.

Level 7 Wind Resistance and 5000m Operating Altitude

The YH-M200 is specified with Level 7 wind resistance and a maximum operating altitude of 5000m. These capabilities support operation in demanding outdoor environments, including mountainous and high-altitude areas.

Actual operating performance depends on weather, payload, altitude and mission configuration.

FOC Full-Digital Power System

The FOC full-digital power system is designed to provide stable motor control and power management during heavy-load operation. A plateau power compensation function is specified for high-altitude use, helping maintain power-system performance under changing operating conditions.

RTK Positioning for Accurate Flight Control

The YH-M200 Heavy-Lift Multirotor Industrial Drone integrates a four-mode satellite positioning system covering GPS, BeiDou, Galileo and GLONASS, together with an industrial RTK module. The listed static positioning accuracy is ±0.05m.

The RTK configuration supports accurate positioning for fixed-point operations, route planning and aerial data collection where positioning accuracy is important.

Applications

The YH-M200 Heavy-Lift Multirotor Industrial Drone is designed for industrial operations that require the transport of heavy materials to locations where conventional ground transportation is difficult.

Mountain Logistics — Transport equipment and supplies to remote or high-altitude areas where road access is limited.
Emergency Supply Delivery — Deliver relief materials and equipment to disaster-affected areas when roads or other ground routes are disrupted.
Construction Material Transport — Move selected tools, equipment and construction materials to remote infrastructure and project sites.
Forestry and Firefighting Support — Support selected aerial transport and monitoring tasks in difficult-to-access forest areas.
Mining and Industrial Operations — Carry compatible equipment and materials for selected mining, surveying and remote industrial operations.

Why Choose YIHANG

YIHANG integrates the airframe, power system, battery and BMS for the YH-M200 Heavy-Lift Multirotor Industrial Drone as a coordinated heavy-lift platform. This allows key system parameters to be matched to the payload and intended operating conditions.

Customization is available for payload brackets, flight parameters and battery configurations, including selected voltage, capacity and connector requirements.

YIHANG supports trial units, bulk orders, technical assistance, spare-parts supply and after-sales service for commercial UAV projects.

FAQ

Q1: What are the payload and flight endurance of the YH-M200 Heavy-Lift Multirotor Industrial UAV?

The YH-M200 has a 200kg maximum payload and 180kg standard payload. Flight endurance is stated at up to 22 minutes with a full 200kg load and up to 60 minutes without load. Actual flight time depends on operating conditions and battery configuration.

Q2: Can the battery configuration be customized?

Yes. YIHANG supports selected battery customization, including voltage, capacity and connector configuration. Semi-solid battery packs can also be specified as an upgrade option where applicable.

Q3: Can payload brackets and flight parameters be customized?

Yes. Payload brackets, mounting configurations and selected flight-control parameters can be adjusted according to the intended cargo or mission requirements.

Q4: What operating conditions is the YH-M200 designed for?

The aircraft is specified with Level 7 wind resistance and a maximum operating altitude of 5000m. Actual operation should take into account payload, weather, altitude and local operating requirements.

Q5: What positioning system does the YH-M200 use?

The YH-M200 combines GPS, BeiDou, Galileo and GLONASS with an industrial RTK module. The listed static positioning accuracy is ±0.05m under the specified conditions.
