Heavy Payload Multi-rotor UAV

A 30kg-class industrial multirotor requires more than lifting capacity alone. The airframe, propulsion system, battery and flight-control system all need to work together to maintain stable operation under load. YIHANG, a professional manufacturer from China, provides YH-30 Heavy Payload Multi-rotor UAV, which uses a 1840mm wheelbase, six-rotor configuration and carbon fiber composite structure as the foundation of its heavy-payload design.

Key Parameters

Its integrated FOC power system, RTK positioning and matched battery configuration are developed as part of the aircraft platform. The foldable airframe also supports transport and deployment in field operating environments, while payload brackets, flight parameters and battery configurations can be adjusted for different project requirements.

Key Advantages

1. 30kg Payload with 20-Minute Full-Load Endurance

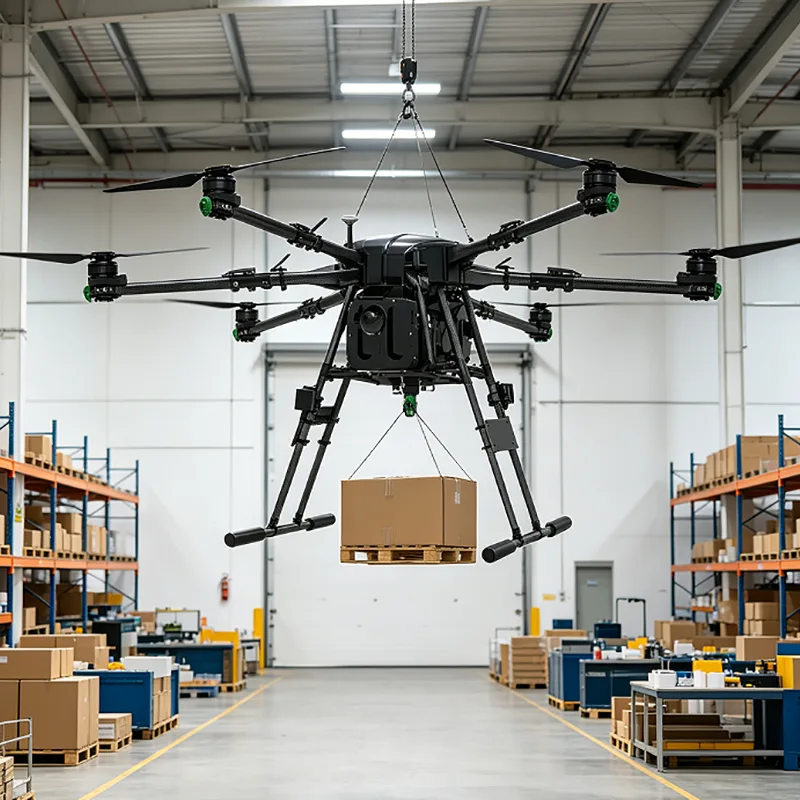

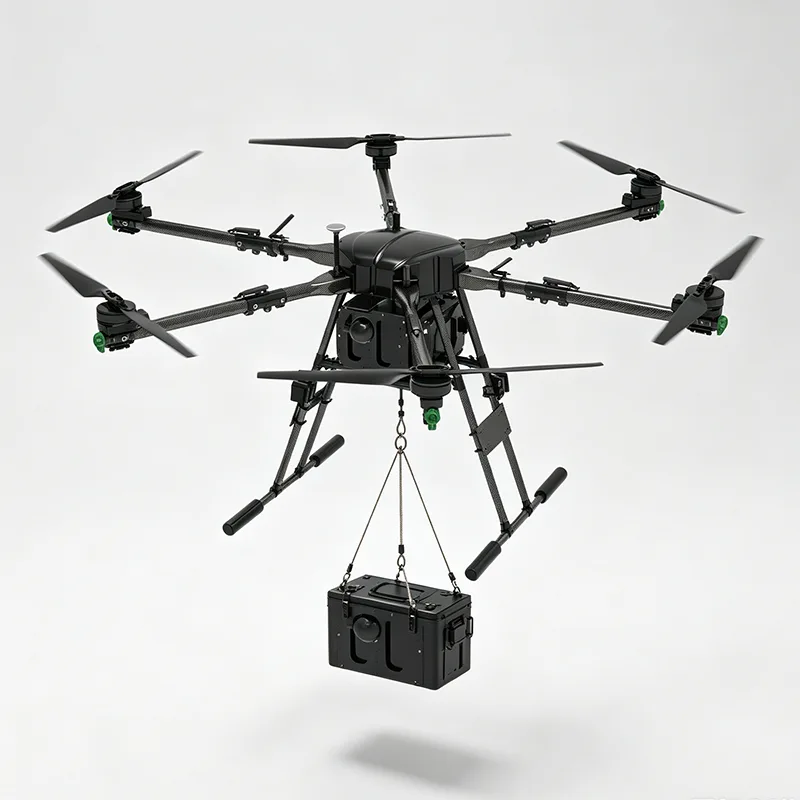

The YH-30 Heavy Payload Multi-rotor UAV provides a 30kg standard payload with a stated flight endurance of up to 20 minutes at full load. The capacity is suited to transporting selected equipment, supplies and industrial materials where conventional ground access is limited.

Its six-rotor configuration distributes lift across multiple propulsion units and is designed for stable control during heavy-payload operation.

2. Up to 50 Minutes of No-Load Endurance

With no payload, the YH-30 provides up to 50 minutes of flight endurance under the stated conditions. The lighter configuration is suitable for missions where longer airborne time is more important than maximum payload capacity.

Actual endurance depends on battery configuration, payload, weather, altitude and flight conditions.

3. Six-Rotor Configuration for Heavy-Payload Operations

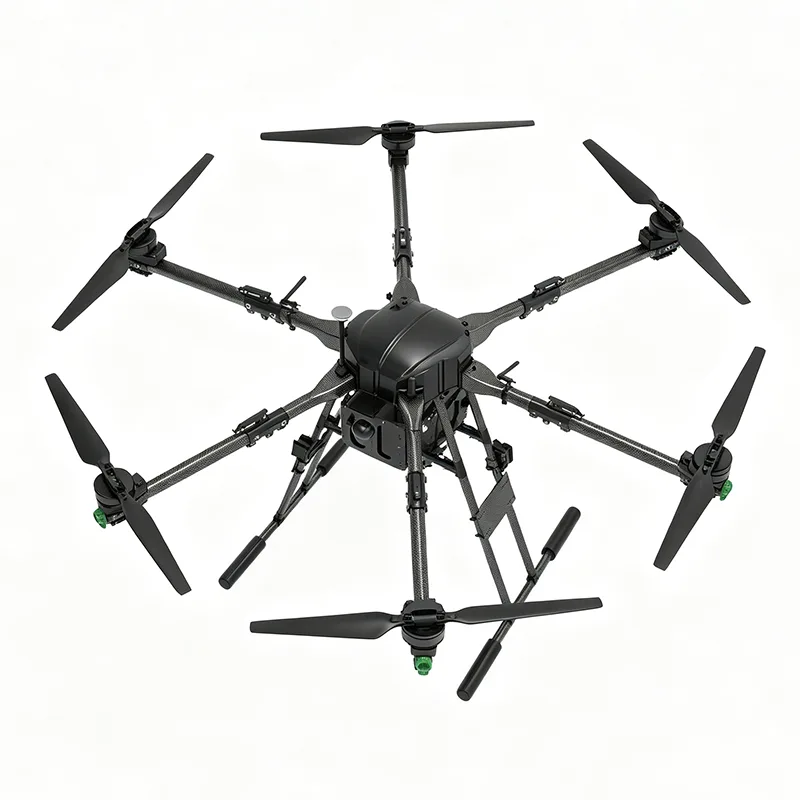

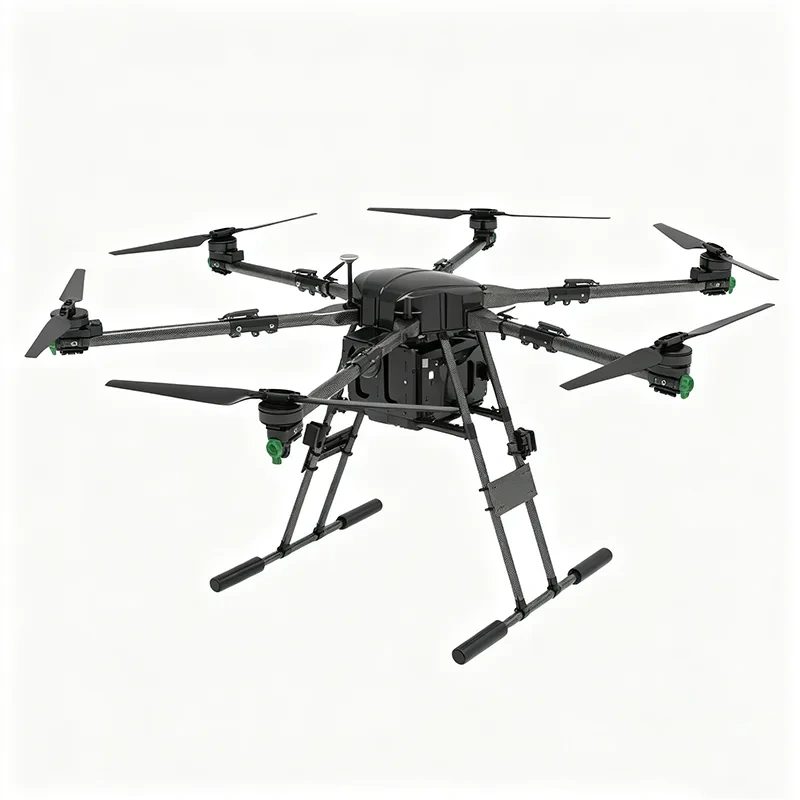

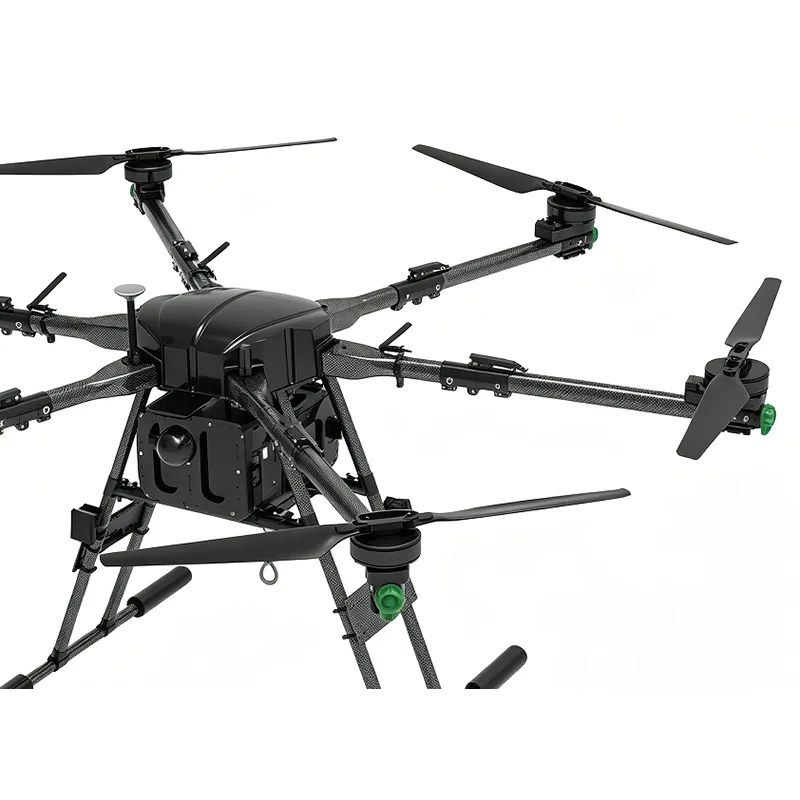

The aircraft adopts a six-rotor, six-propeller configuration with an 1840mm wheelbase. The distributed propulsion layout provides multiple lift points and supports stable flight control during heavy-load operation.

The airframe combines carbon fiber composite and aviation aluminum for structural strength while keeping the aircraft suitable for field transport.

4. FOC High-Efficiency Power System

The FOC full-digital power system provides precise motor control and power management under heavy-load conditions. A plateau power compensation function is available for high-altitude operation to support consistent power-system performance.

5. RTK Positioning for Accurate Operations

The YH-30 Heavy Payload Multi-rotor UAV combines GPS, BeiDou, Galileo and GLONASS with an industrial RTK module. The listed static positioning accuracy is ±0.05m.

The RTK configuration supports accurate positioning for route planning, fixed-point operations and aerial data collection where positioning performance is important.

Payload & Configuration

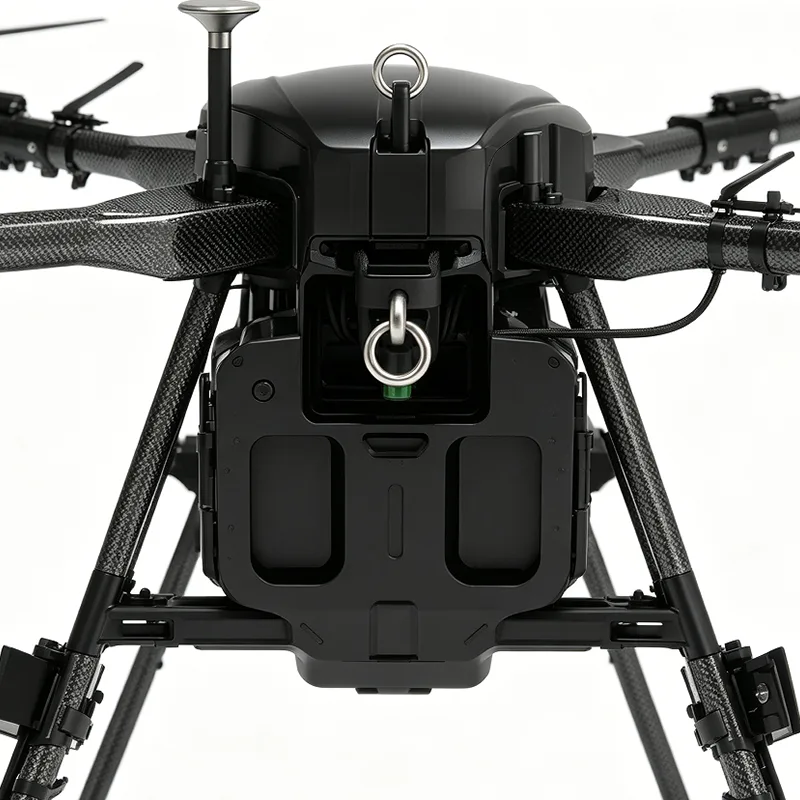

The YH-30 uses a configurable payload interface for different equipment requirements. Depending on the project, YIHANG can provide customized payload brackets, mounting structures and flight parameters.

The platform can also be configured for selected equipment such as lifting systems, delivery mechanisms, lighting equipment, loudspeakers, sensors and other compatible third-party payloads. Final compatibility depends on payload weight, dimensions, mounting method, power requirements and aircraft balance.

Battery configuration can also be adjusted according to the required voltage, capacity and connector specifications.

Applications

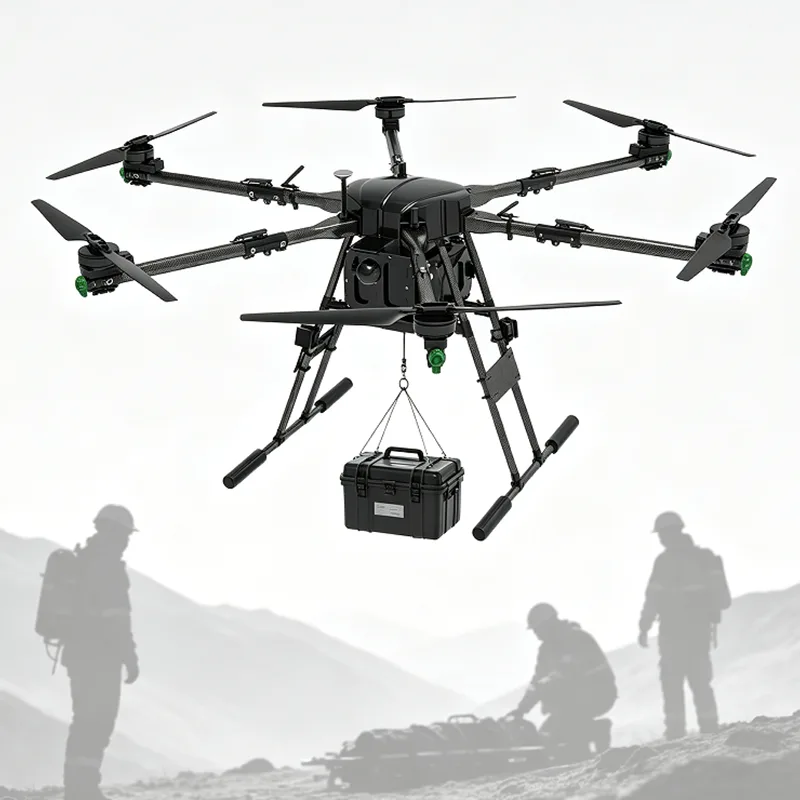

Mountain Logistics

The YH-30 Heavy Payload Multi-rotor UAV can transport selected heavy equipment and supplies to remote mountain locations where road access is limited or difficult.

Emergency Supply Delivery

The aircraft can support delivery of relief supplies and equipment to areas affected by blocked roads, damaged infrastructure or difficult terrain.

Firefighting Support

With compatible payload equipment, the YH-30 can support selected firefighting operations, including the transport or deployment of compatible fire-suppression payloads and auxiliary equipment.

Industrial Inspection

The no-load configuration can be used with compatible inspection equipment for power-line, pipeline and other infrastructure monitoring.

Survey & Mapping

The RTK positioning system can support aerial data collection and mapping tasks with compatible surveying equipment.

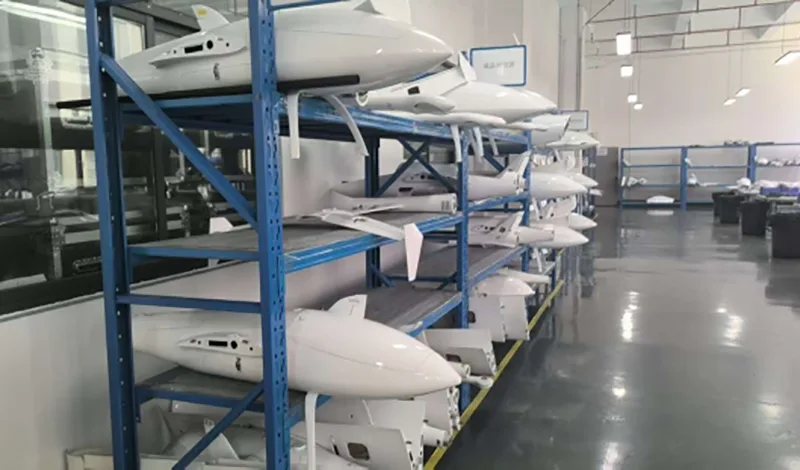

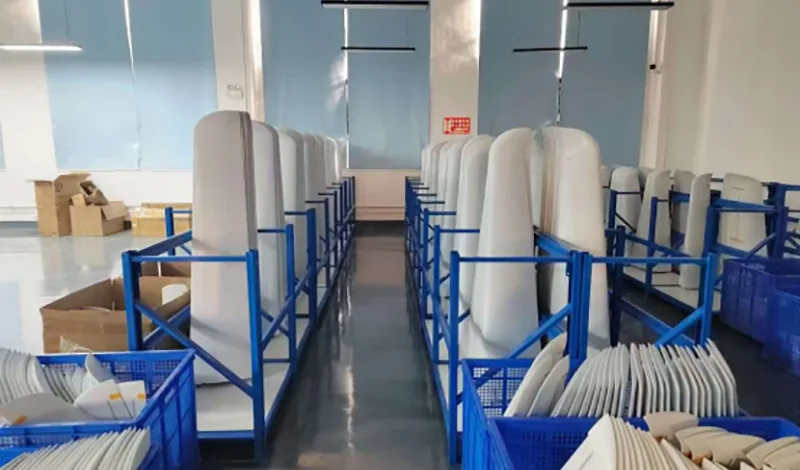

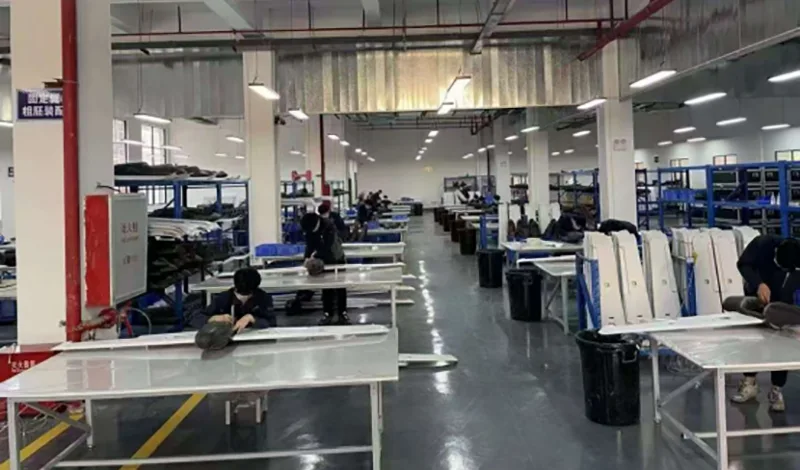

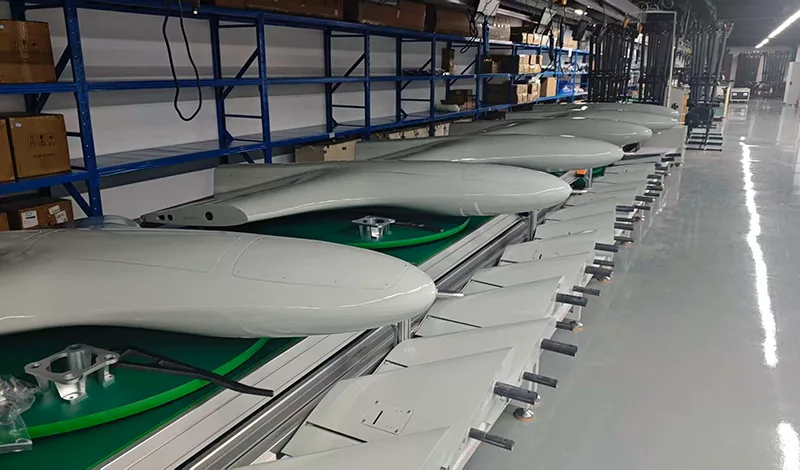

Manufacturing & Support

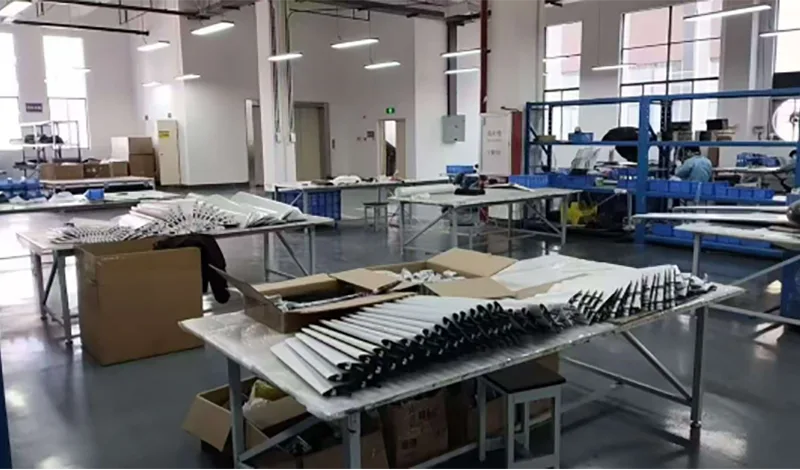

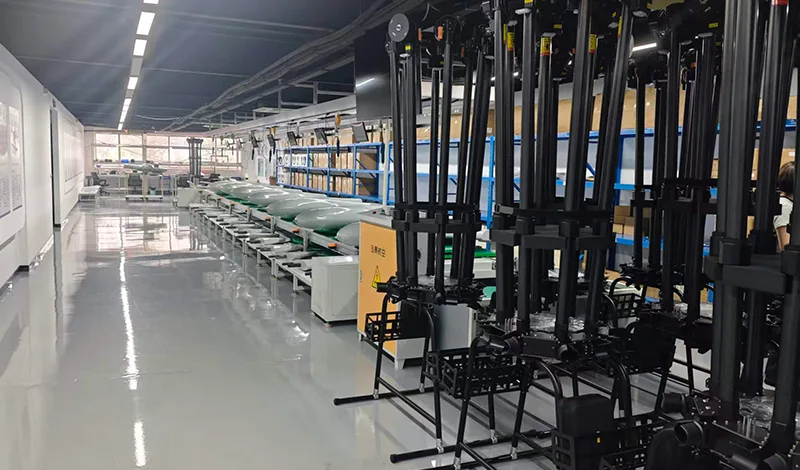

YIHANG integrates key YH-30 systems including the airframe, power system, battery and BMS as part of the overall aircraft configuration. This allows selected parameters to be matched according to payload and operating requirements.

For commercial projects, YIHANG supports payload bracket modification, flight-control tuning, battery configuration and OEM branding. Trial units are available for customer evaluation, with bulk orders, a one-year warranty and technical support available according to project requirements.

FAQ

What are the payload and endurance specifications of the YH-30?

The YH-30 has a 30kg standard payload. Its stated endurance is up to 20 minutes with a full 30kg load and up to 50 minutes without load. Actual flight time varies with payload, battery configuration, weather, altitude and flight conditions.

Can the YH-30 be customized for different payloads?

Yes. YIHANG can customize selected payload brackets, mounting structures, flight parameters and battery configurations according to project requirements.

Can third-party equipment be integrated with the YH-30?

Selected third-party payloads can be integrated, subject to their weight, dimensions, mounting requirements, power consumption, interface and aircraft balance.

What positioning system does the YH-30 use?

The YH-30 combines GPS, BeiDou, Galileo and GLONASS with an industrial RTK module. The listed static positioning accuracy is ±0.05m under the specified conditions.

What environmental conditions can the YH-30 operate in?

The aircraft is specified with Level 7 wind resistance, a maximum operating altitude of 5000m and an operating temperature range of -20°C to 60°C. Actual operating limits depend on payload, weather and mission conditions.

Are trial units available?

Yes. Trial units are available, and the MOQ is negotiable for commercial projects. Warranty and lead-time arrangements can be discussed according to the order requirements.
