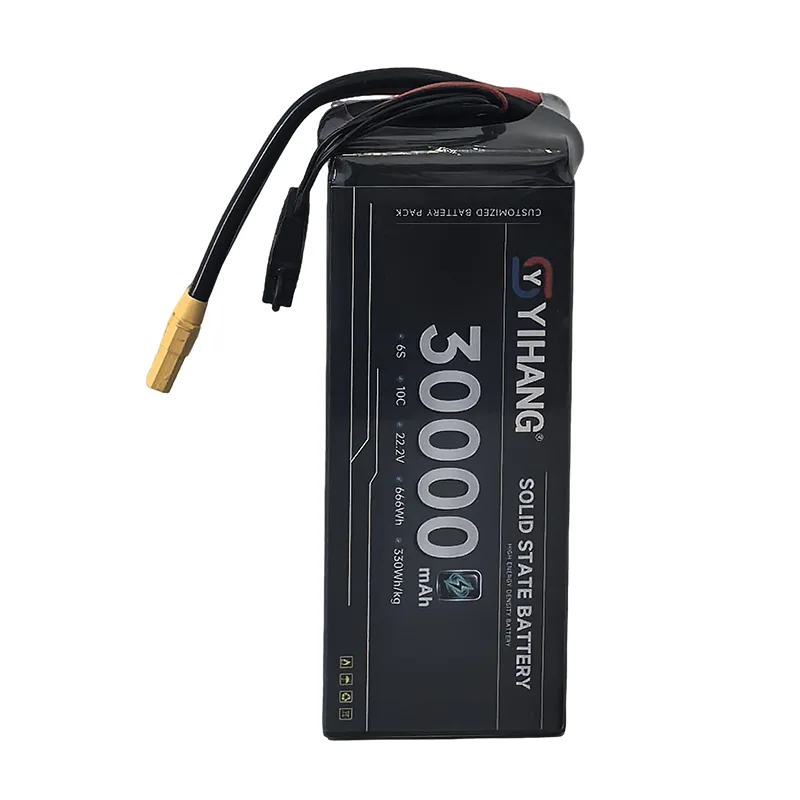

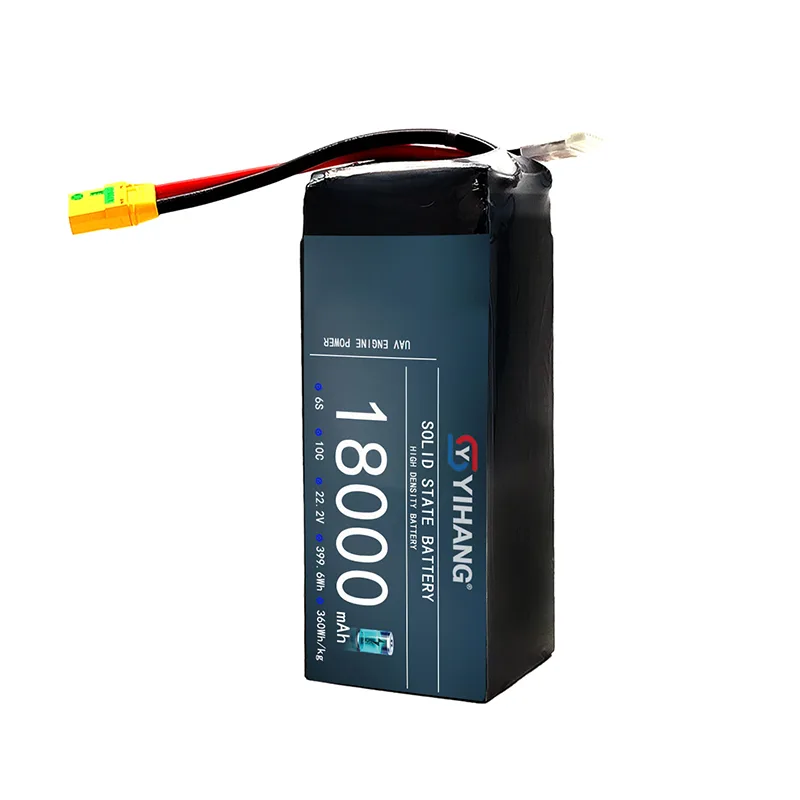

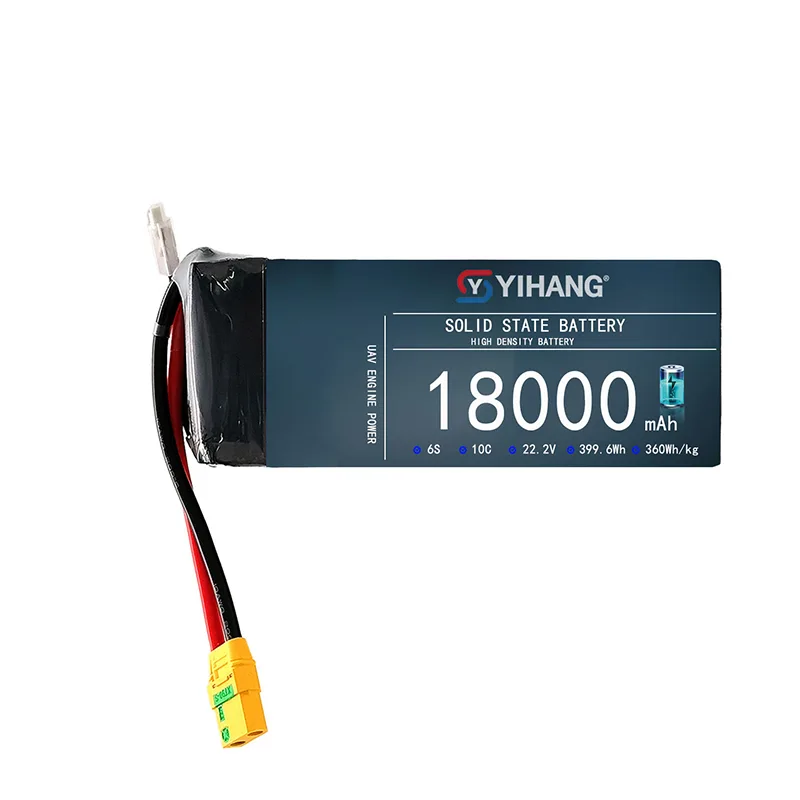

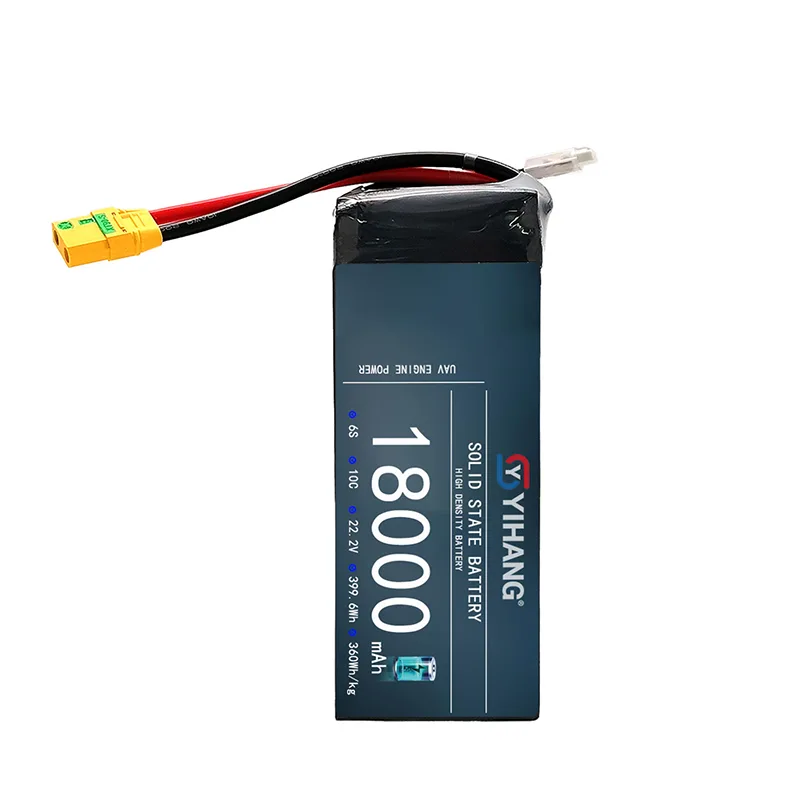

FPV Drone Battery

Eliminate voltage sag with the Long-Range FPV Drone Battery by YIHANG, a leading Chinese manufacturer. Engineered with high-density LiPo cells, our packs deliver sustained >10C discharge and 120C burst power without throttle lag. It is suitable for cinelifters and long-range drones. Customized OEM/ODM services are available.

Send Inquiry

Product Description

When an FPV drone demands high current, peak C-rate is only part of the equation. What matters is how consistently the battery delivers power throughout the flight. YIHANG develops and manufactures its own LiPo cells in-house, optimizing electrode and electrolyte formulations for high-rate discharge, low internal resistance, and stable power delivery. The result is an FPV Drone Battery engineered to maintain strong, responsive power throughout the discharge cycle, supporting demanding freestyle, cinematic, long-range, and high-load flight applications.

Battery Parameter

Classification Item	Detailed Technical & Commercial Information
Product full name	FPV Drone Battery
Battery density	275--350Wh/kg

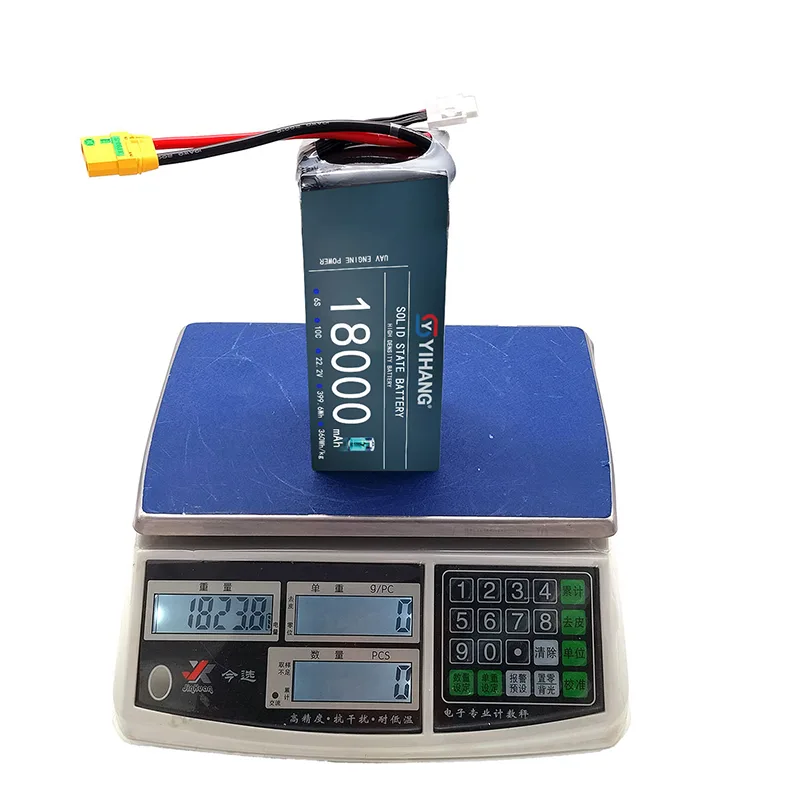

Battery weight	1.82kg
Battery voltage	22.2V
Discharge rate	>10C (customizable up to 120C)
Battery size	5275193mm (customizable)
Cycle life	1000 cycles (to 80% initial capacity, tested at 25°C±2°C, 1C charge / 2C discharge, 100% DOD)
Charging plug	custom supported
Series	2S/4S/6S/8S/12S
Capacity	18000mAh
BMS system	Negotiable
Charge/discharge temperature	-20°C to 60°C
MOQ requirement	Negotiable, support small quantity and trial order
Available Custom Service	Customized density, size, C-rate, voltage, capacity, BMS parameters, connectors, and logo printing
Warranty	YIHANG offer 1 year quality warranty underregular operation
Payment term	T/T ,L/C
TRADING TERM	FOB/CIF
MANUFACTURER	YIHANG

Built-in Smart BMS with LED Indicator Panel — Real-time Monitoring, Multi-layer Protection, and Full Lifecycle Data Management.

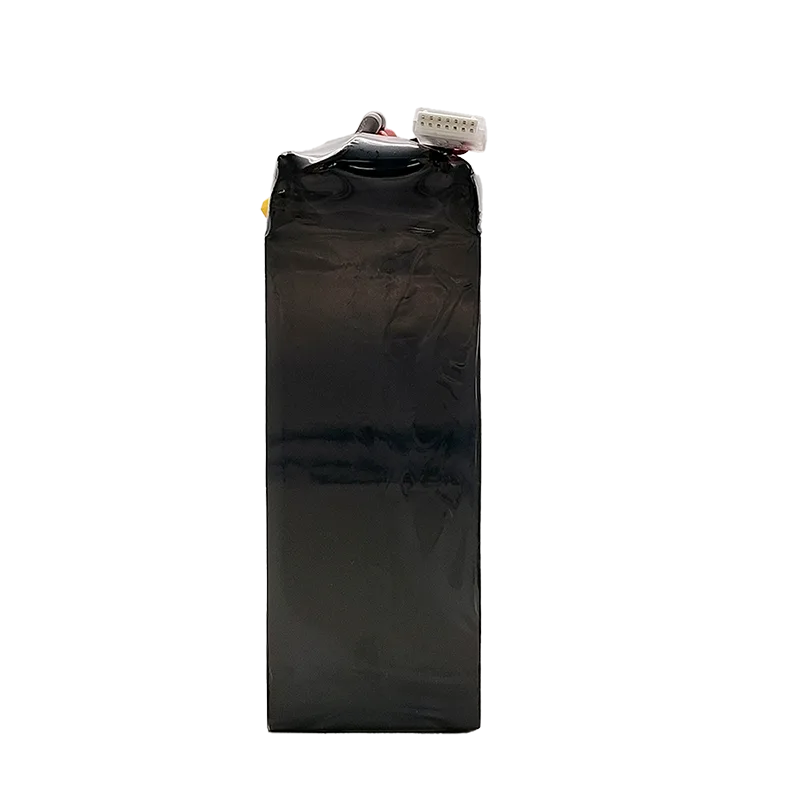

POUCH CELL OPTIONAL
Number	BMS Function	Description
1	Smart SOC Indication	Four high-brightness LEDs auto-detect charge/discharge status for real-time SOC display. When powered off, short-press the button; LEDs show SOC for ~2s then turn off.
2	Battery Life Reminder	At preset cycle count, all SOC LEDs turn red for mid-end-life warning; use cautiously
3	Smart Charge Alarm	Monitors charging status in real-time; triggers alarm for over-voltage, over-current and over-temperature.
4	Smart Storage	Activates automatically for long-term idle storage at high SOC; discharges to storage voltage for safe preservation.
5	Auto-Sleep	Auto-sleep power-off when idle: 3-min delay at high SOC, 1-min delay at low SOC to conserve power.
6	Firmware upgrade	Supports firmware upgrade via USB port connected to PC.
7	Data Communication	Supports USB-Serial, WIFI and CAN interfaces. Retrieve real‑time battery data (voltage, current, cycle count) via USB-Serial/WIFI; CAN interfaces with flight controller for data exchange.
8	Battery Logging	Stores full-life battery logs including cell voltage, current, temperature, cycle count and fault events; viewable via PC or mobile device.
9	Smart Balancing	Built-in auto balancing; manual trigger available for large cell voltage gap, keeps cell voltage difference within 20mV.

Smart BMS & Battery Protection

Each pack supports protection against overcharge, over-discharge, and short circuits. For long-range and advanced FPV platforms, an optional compact smart BMS provides real-time battery telemetry through CAN or RS485.

Flexible Configurations & OEM Customization

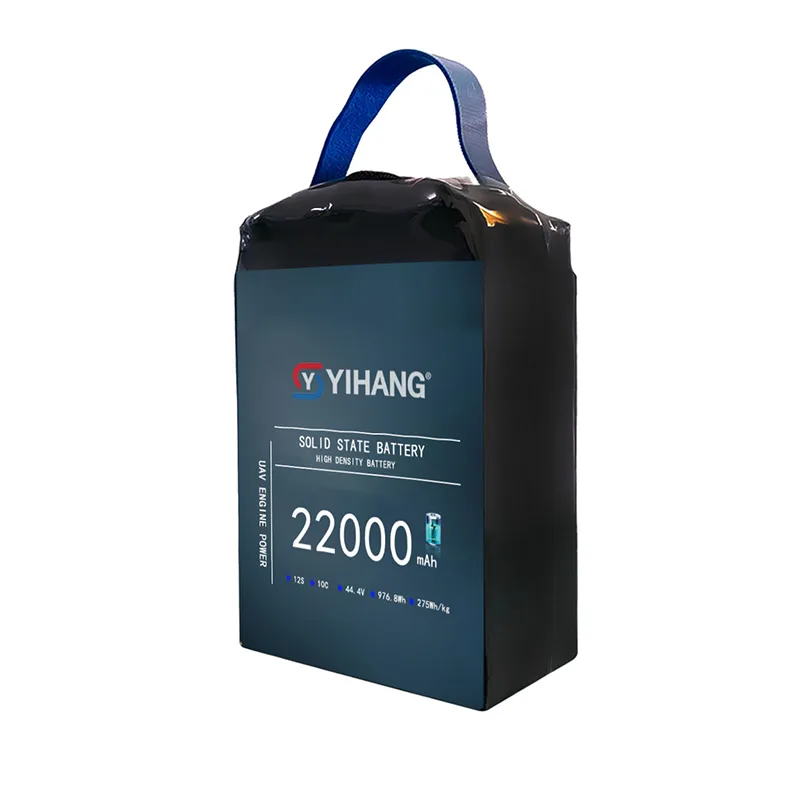

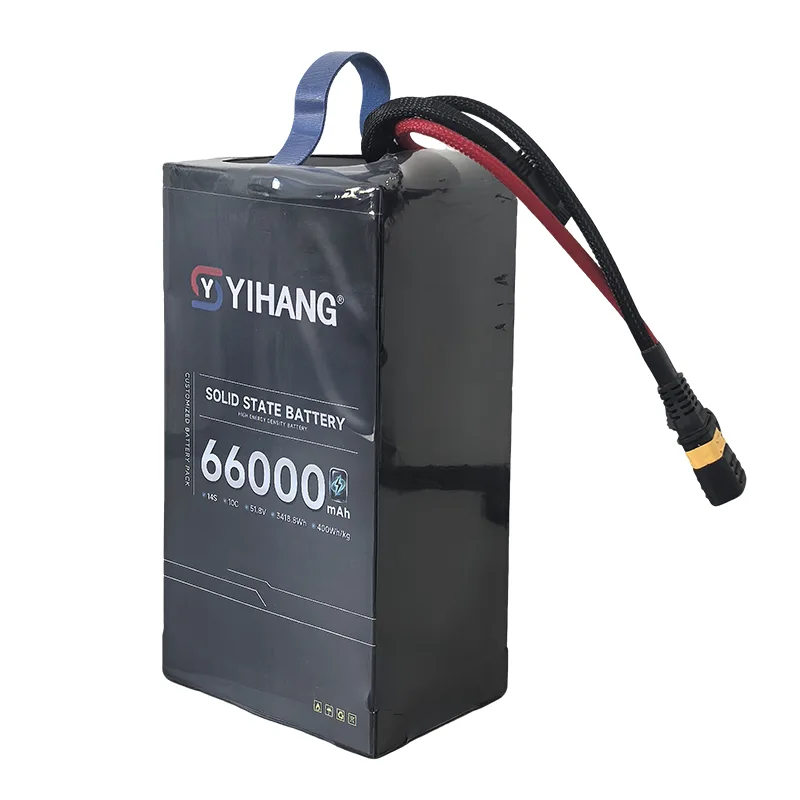

Available in 2S–12S, with capacities from 4,000mAh to 18,000mAh and discharge rates from 10C continuous to 120C burst. Battery dimensions, voltage, capacity, connectors, BMS parameters, and branding can all be customized to match your airframe and power system.

Data-sheet of Different Batteries

Product name	Code number	Capacity	Voltage	Size	Weight	Discharge C-rate
6S-1P	Y11-B0604B1-01	4000mAh	21.6V	958047mm	0.45kg	>10C
6S-1P	Y11-B0605B3-01	5000mAh	21.6V	958047mm	0.45kg	>10C
6S-2P	Y11-B0608B1-01	8000mAh	21.6V	1408047mm	0.9kg	>10C
6S-2P	Y11-B0610B3-01	10000mAh	21.6V	1408047mm	0.9kg	>10C
6S-3P	Y11-B0612B1-01	12000mAh	21.6V	1408070mm	1.4kg	>10C
6S-3P	Y11-B0615B3-01	15000mAh	21.6V	1408070mm	1.4kg	>10C
8S-2P	Y11-B0808B1-01	8000mAh	28.8V	1858047mm	1.2kg	>10C
8S-2P	Y11-B0810B3-01	10000mAh	28.8V	1858047mm	1.2kg	>10C
8S-3P	Y11-B0812B1-01	12000mAh	28.8V	1858070mm	1.8kg	>10C
8S-3P	Y11-B0815B3-01	15000mAh	28.8V	1858070mm	1.8kg	>10C
Other capacities, voltages, and C-rates available upon request.

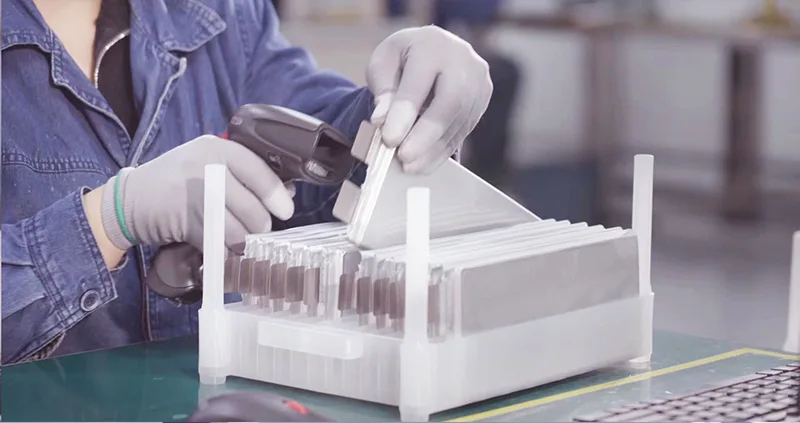

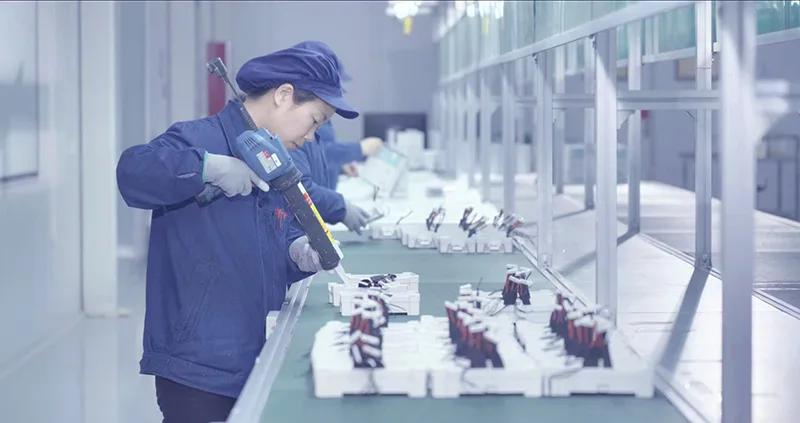

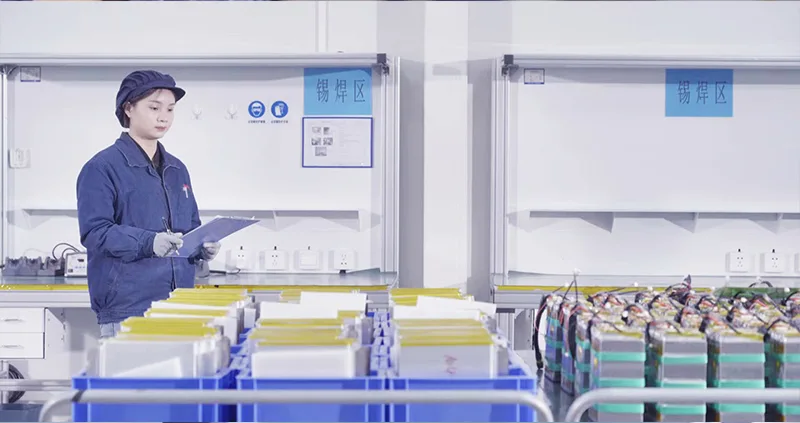

Production Line – From Cell to Pack

We manufacture our own cells. Most FPV Drone Battery brands don't — they source cells from suppliers and only handle final assembly. We keep the full process in-house: chemistry, electrode formulation, electrode coating, cell stacking, BMS assembly, and final pack integration.

Trial orders start at 5–10 units. Fly it first, then scale up when you're ready.

Customization & Sampling Timeline

Stage	Estimated Time	What You Need to Do
1. Requirement intake	1–2 days	Provide drone model, preferred voltage/C-rate, capacity target, and battery bay dimensions
2. Specification draft	3–5 days	Review and approve mechanical drawing, electrical interface, and BMS parameter sheet
3. Sample fabrication	10–15 days	We build 2–3 sample units per your spec
4. Sample validation	7–10 days	Perform flight tests; we share internal test report (capacity, IR, cycle data)
5. Bulk production	20–30 days	Place PO; we provide weekly production updates
6. Final QC & shipping	3–5 days	Each unit receives full electrical test + visual inspection; QC reports shared per batch

Key Advantages

• Instant Throttle Response (Zero Voltage Sag)

Engineered with ultra-low internal resistance to maintain a flat discharge voltage curve. Eliminates initial power hesitation during aggressive throttle punch-outs and high-current maneuvers.

• Sustained >10C Discharge & 120C Burst

In-house cell chemistry prevents motor power starvation during peak loads. Delivers continuous current for long-range cruising and instantaneous 120C burst output under heavy load conditions.

• Up to 350 Wh/kg Specific Energy Density

High energy-to-weight ratio reduces deadweight on 7-inch+ and cinematic airframes, improving agility, cornering precision, and total flight endurance without sacrificing discharge performance.

• Full Custom OEM/ODM Capabilities

Configurable from 2S to 12S voltage, 4000mAh to 18000mAh capacity, custom pack dimensions, specialized connectors, and custom logo branding. Prototype trial orders supported starting at 5 units.

Why Choose YIHANG for Your FPV Drone Batteries

In-House Cell Manufacturing & Chemical Customization

Unlike suppliers that re-package third-party cells, YIHANG manufactures LiPo cells in-house at our Dongguan facility. We directly control electrode slurry formulation, cell stacking, and electrolyte density, ensuring reliable 120C burst discharge and low internal resistance under heavy current loads.

Verified Flight Telemetry & Performance Data

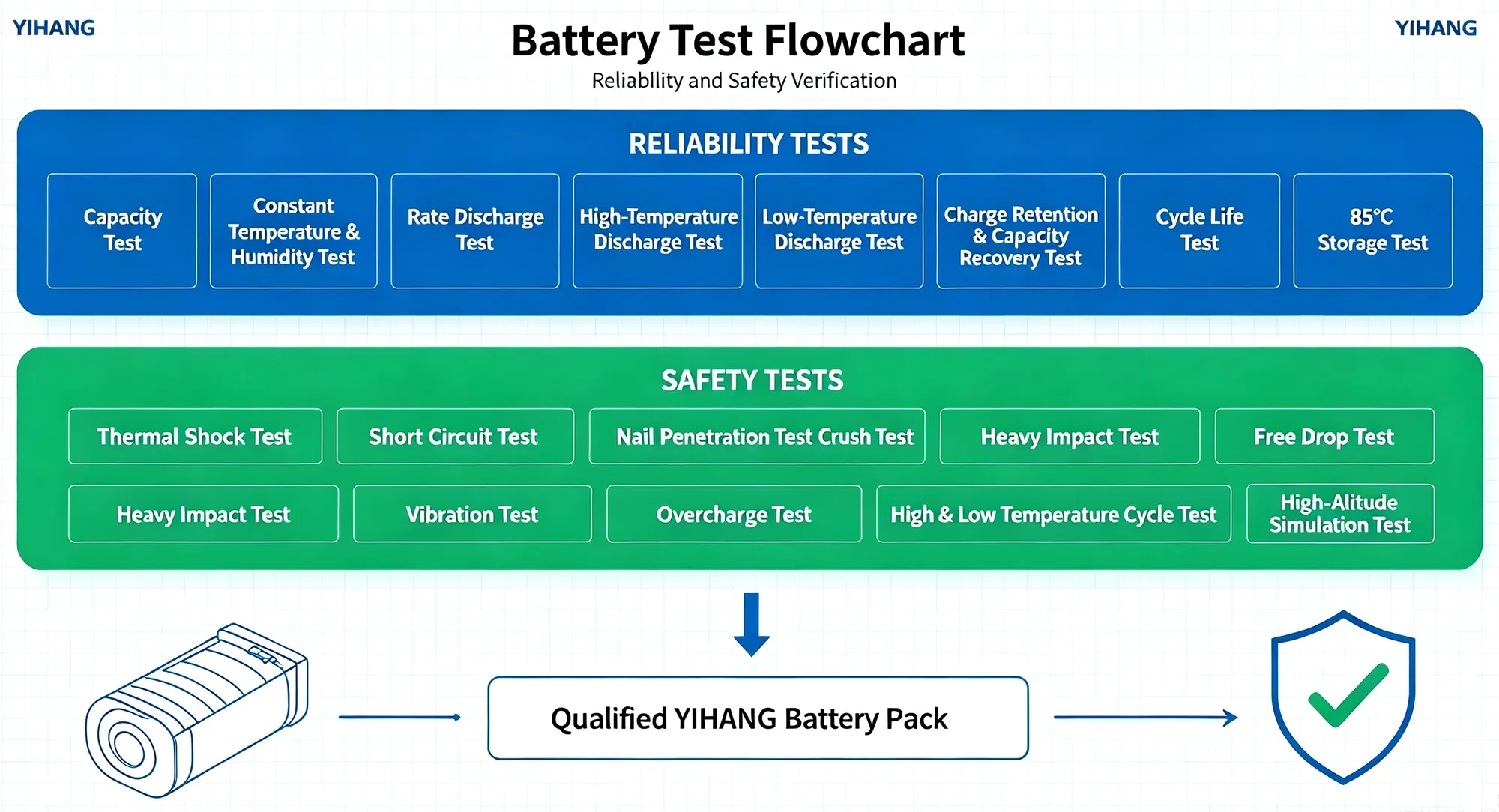

Every technical specification—including 350 Wh/kg energy density, 120C burst power, and 1,000-cycle life—is validated through internal laboratory testing and field flight telemetry. Full test reports, discharge curves, and cell IR logs are available for technical evaluation.

Direct Engineering & Prototyping Support

Our 20-member engineering team provides direct technical support for custom pack geometry, connector selection, and BMS firmware customization. To accelerate airframe integration, we support trial prototype orders of 5 to 10 units with lead times of 10 to 15 working days.

FAQ

Q1: What's the actual C-rate in real flight, not on paper?

Our FPV Drone Battery is rated at >10C continuous and up to 120C burst — verified under real flight conditions, not just lab tests. Full-throttle punch-outs, rapid throttle changes, aggressive freestyle — the power holds.

Q2: Can you customize the size to fit my frame?

Yes. Send us your battery bay CAD or inner dimensions. We'll adjust cell stacking and casing to fit tight or irregular compartments — no extra charge for the first prototype.

Q3: How long does a custom order take?

Standard packs from our spec sheet: 15-20 working days. Full custom (new housing, BMS firmware changes): 25-35 working days. Trial orders ship in 10-15 days — we know you want to fly it ASAP.

Q4: Do your batteries support fast charging?

We recommend 1C for maximum cycle life. If you need faster turnaround in the field, 2C charging is supported with a moderate cycle life reduction (around 15-20%). We can optimize cell chemistry based on your priorities.
