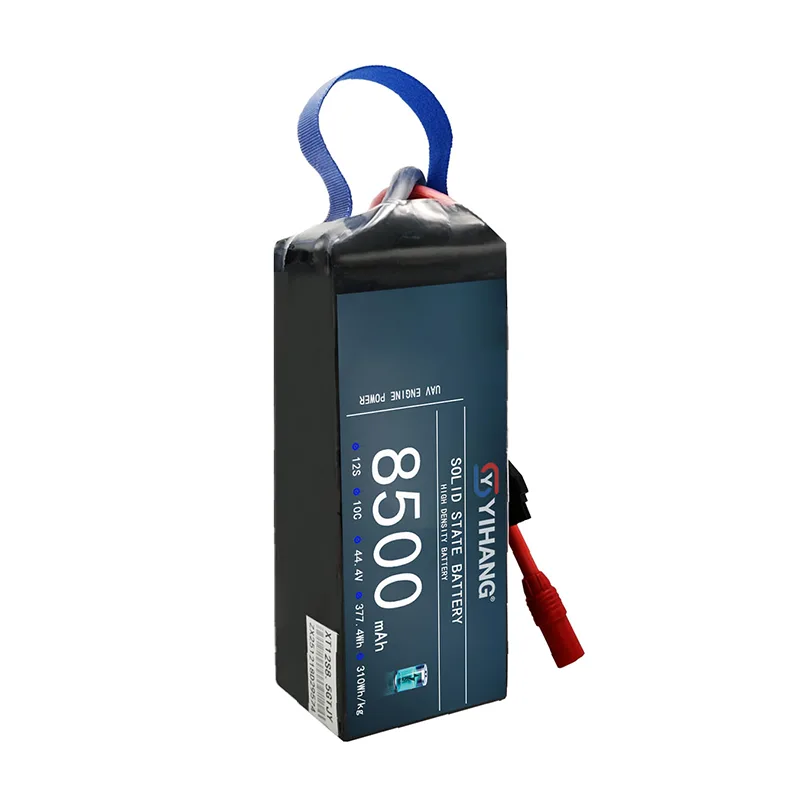

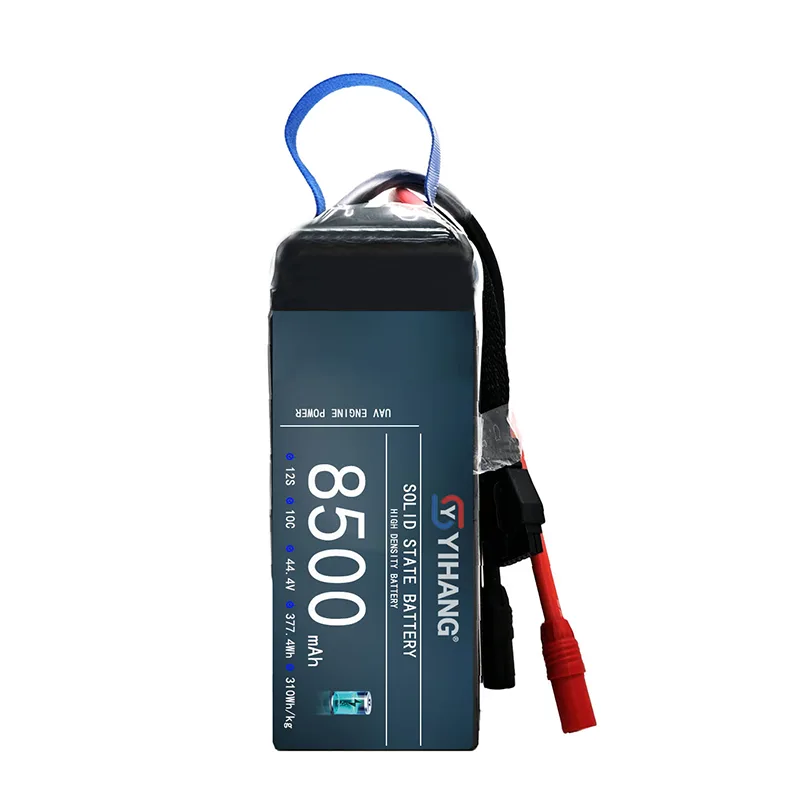

LiPo Battery Pack For Drone
LiPo Battery Pack For Drone built with premium lithium polymer cells, these battery packs deliver reliable energy support. YIHANG factory has specialize in battery field for many years and can produce all kinds LiPo battery for drones, robots and other devices. Different from ordinary batteries, drone LiPo packs feature ultra-low internal resistance, strong instantaneous discharge performance and consistent voltage stability during long flights, effectively avoiding power dropouts that affect drone stability and shooting quality.
Send Inquiry
Product Description
YIHANG, a professional manufacturer from China, develops high-performance LiPo Battery Pack For Drone solutions for industrial UAVs, racing drones, robots, and other aerial platforms requiring lightweight design and high-rate power output. The battery packs use high-energy-density LiPo cells with low internal resistance characteristics to provide stable power during rapid acceleration, climbing, maneuvering, and heavy-load flight conditions.
With flexible configurations from 3S to 28S and customizable capacity, voltage, C-rate, size, and BMS options, YIHANG provides battery solutions adapted to different drone structures and flight requirements.
Battery Parameter
|
Classification Item |
Detailed Technical & Commercial Information |
|
Product full name |
LiPo Battery Pack For Drone |
|
Battery density |
220--400Wh/kg |
|

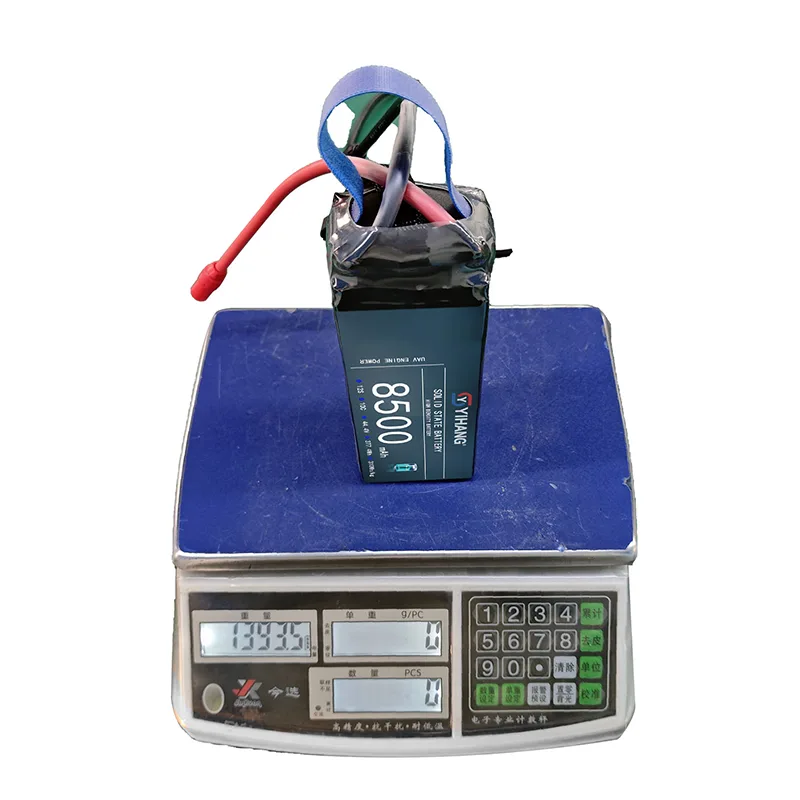

Battery weight |
1.4kg |
|
Battery voltage |
44.4 V |
|
Discharge rate |
>10C |
|

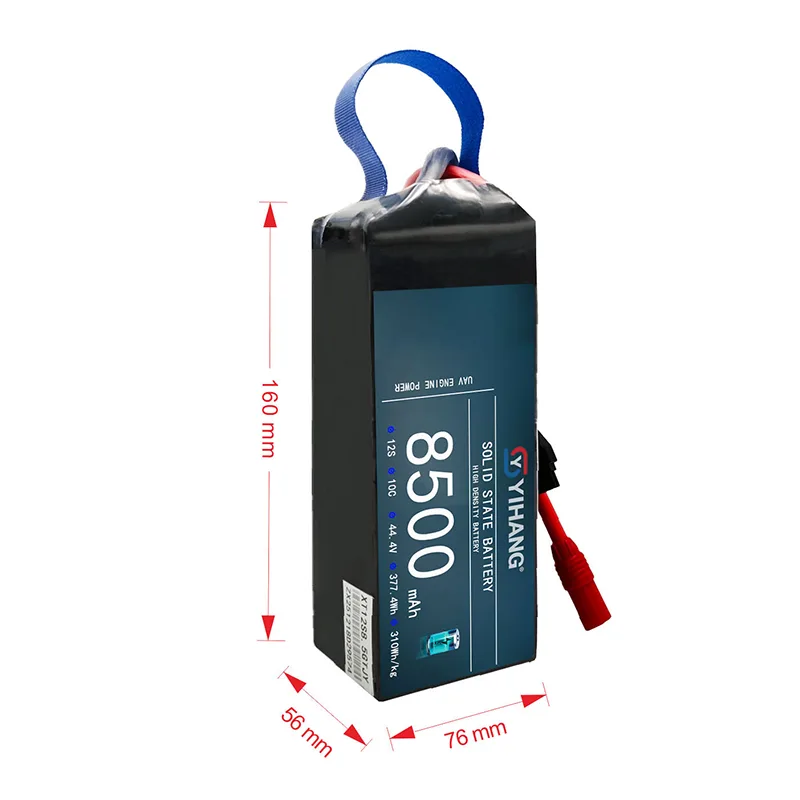

Battery size |
160*56*76mm |
|
Charging plug |
support customize |
|
With BMS or not |
No, can customized |
|
Standard capacity |
8500mah, |
|
Cycle life |
1000 times |
|
MOQ requirement |
Negotiable, support small quantity and trial order |
|
Available Custom Service |
Customized Density, size and c-rate battery base on clients’ drone |
|
Communication protocol |
RS485/ CAN |
|
warranty |
Yihang offer 1 year quality warranty under regular operation |
|
Payment term |
Only accept 100% T/T |
|
TRADING TERM |
FOB CIF |
|
MANUFACTURER |
XUZHOU YIHANG INTELLIGENT TECHNOLOGY CO.,LTD |
Built-in Smart BMS with LED Indicator Panel — Real-time Monitoring, Multi-layer Protection, and Full Lifecycle Data Management.
|
POUCH CELL OPTIONAL |
||
|
Number |
BMS Function |
Description |
|
1 |
Smart SOC Indication |
Four high-brightness LEDs auto-detect charge/discharge status for real-time SOC display. When powered off, short-press the button; LEDs show SOC for ~2s then turn off. |
|
2 |
Battery Life Reminder |
At preset cycle count, all SOC LEDs turn red for mid-end-life warning; use cautiously |
|
3 |
Smart Charge Alarm |
Monitors charging status in real-time; triggers alarm for over-voltage, over-current and over-temperature. |
|
4 |
Smart Storage |
Activates automatically for long-term idle storage at high SOC; discharges to storage voltage for safe preservation. |
|
5 |
Auto-Sleep |
Auto-sleep power-off when idle: 3-min delay at high SOC, 1-min delay at low SOC to conserve power. |
|
6 |
Firmware upgrade |
Supports firmware upgrade via USB port connected to PC. |
|
7 |
Data Communication |
Supports USB-Serial, WIFI and CAN interfaces. Retrieve real‑time battery data (voltage, current, cycle count) via USB-Serial/WIFI; CAN interfaces with flight controller for data exchange. |
|
8 |
Battery Logging |
Stores full-life battery logs including cell voltage, current, temperature, cycle count and fault events; viewable via PC or mobile device. |
|
9 |
Smart Balancing |
Built-in auto balancing; manual trigger available for large cell voltage gap, keeps cell voltage difference within 20mV. |

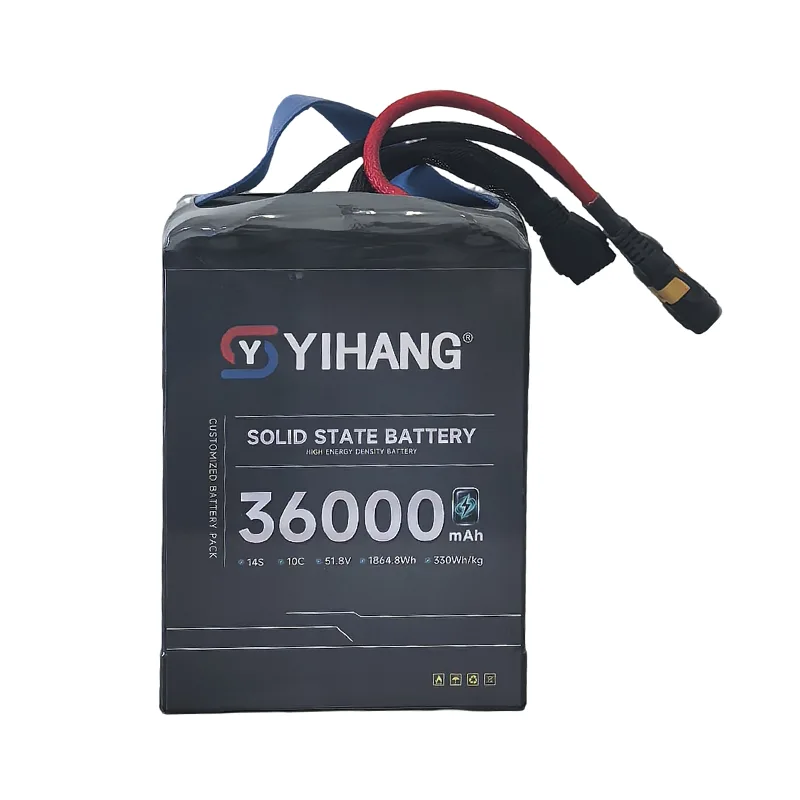

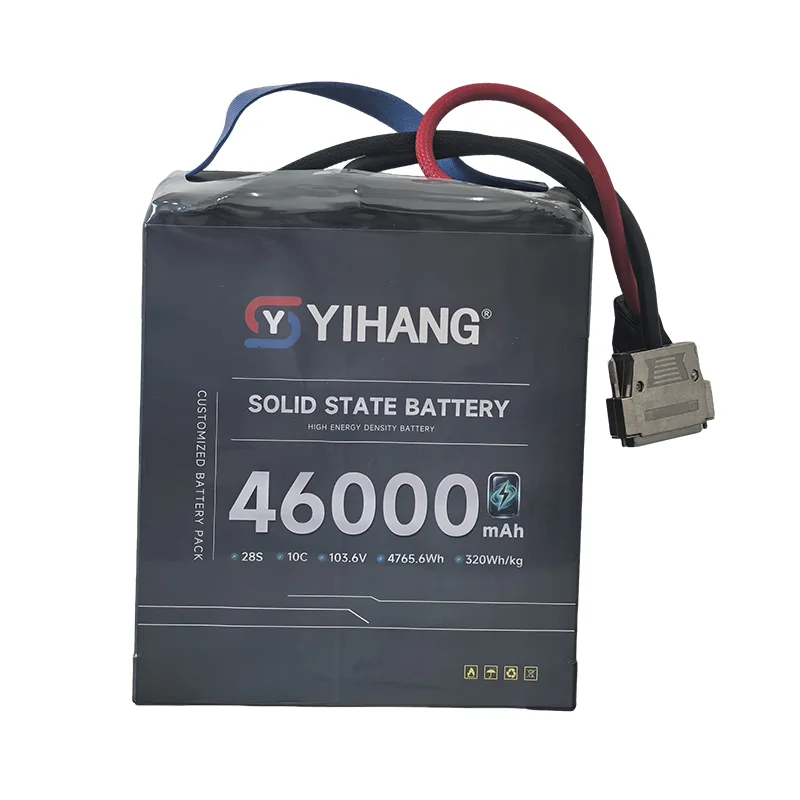

Fleet of different batteries
| Energy density | Model | L*W*H(±3mm) | Weight(±200g) | Rated voltage | C-rate |
| 300Wh/kg | YHGT001-6S20AH | 52*75*193 mm | 1.70kg | 22.2V |
Peak discharge rate 10c Constant discharge rate 3c |
| YHGT001-6S25AH | 66*76*193 mm | 2.02kg | 22.2V | ||
| YHGT004-6S29AH | 60*90*213 mm | 2.38kg | 22.2V | ||
| YHGT001-12S20AH | 104*75*193 mm | 3.29kg | 44.4V | ||
| YHGT001-12S25AH | 132*76*193 mm | 4.25kg | 44.4V | ||
| YHGT004-12S29AH | 120*90*213 mm | 4.70kg | 44.4V | ||
| YHGT001-14S20AH | 123*75*193 mm | 3.90kg | 51.8V | ||
| YHGT001-14S25AH | 151*76*193 mm | 4.77kg | 51.8V | ||
| YHGT004-14S29AH | 140*90*213 mm | 5.45kg | 51.8V | ||
| YHGT001-18S20AH | 157*75*193 mm | 4.92kg | 66.6V | ||
| YHGT001-18S25AH | 191*76*193 mm | 6.0kg | 66.6V | ||
| YHGT004-18S29AH | 181*90*213 mm | 7.15kg | 66.6V | ||
| YHGT001-24S20AH | 130*152*193 mm | 6.48kg | 88.8V | ||
| YHGT001-24S25AH | 132*152*193 mm | 7.97kg | 88.8V | ||
| YHGT004-24S29AH | 120*182*213 mm | 9.36kg | 88.8V |
Key Advantages of LiPo Drone Battery Pack
Lightweight Design with High Energy Density
LiPo cells provide a favorable balance between weight and energy output, making them suitable for UAV platforms where battery weight directly affects payload capacity and flight performance. The flexible cell structure also allows battery packs to be designed for different installation spaces.
High-Rate Discharge Performance
The LiPo Battery Pack For Drone supports high discharge rates to meet the power demands of rapid climbing, acceleration, sharp turning, and payload operation. Low internal resistance helps maintain stable voltage output during dynamic flight conditions.
Flexible Battery Configuration
YIHANG supports multiple cell configurations, including 3S, 4S, 6S, 8S, 12S, 16S, 18S, 24S, and 28S solutions. Battery voltage, capacity, dimensions, connectors, and C-rate can be adjusted according to different UAV platforms.
Adaptable for Different UAV Platforms
The battery design can be customized for agricultural drones, industrial inspection UAVs, mapping platforms, and other applications requiring reliable power output and compact installation.
Quality Control and Battery Testing
Each battery pack undergoes electrical performance checks, including voltage consistency, charging and discharging tests, capacity verification, and connection inspection before shipment. Customized testing requirements can also be evaluated according to project needs.
Product Applications
The LiPo Battery Pack For Drone is designed for UAV platforms requiring lightweight construction, high discharge capability, and flexible battery configurations.
Agricultural Drones
Suitable for spraying drones requiring stable power output during repeated takeoff, operation, and landing cycles.
Industrial Inspection UAVs
Provides compact and high-power battery solutions for inspection drones used in infrastructure, energy, and industrial applications.
Mapping and Survey Drones
Supports UAV platforms equipped with cameras, sensors, and mapping equipment where stable flight endurance is required.
Racing and High-Performance Drones
The high discharge capability of LiPo batteries makes them suitable for applications requiring rapid response and strong power output.
Why Choose YIHANG LiPo Battery Pack
Customized Battery Solutions
YIHANG provides customized battery configurations based on UAV requirements, including voltage, capacity, size, discharge rate, connectors, and BMS integration.
Engineering Support for UAV Integration
The technical team evaluates battery specifications according to drone structure, power requirements, and installation conditions to support suitable battery matching.
Multiple Configuration Options
Existing battery models cover different voltage and capacity ranges, providing reference solutions for various UAV platforms and development projects.

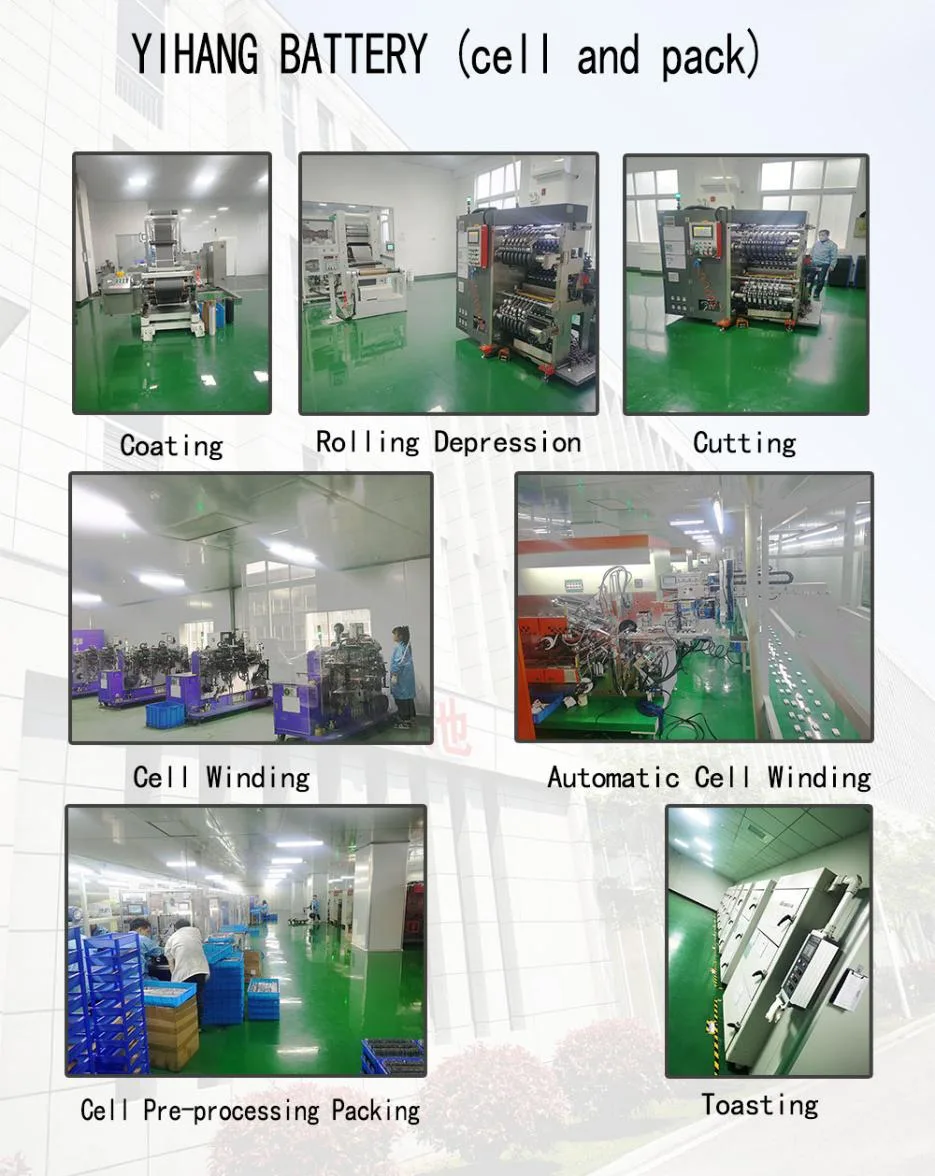

YIHANG Battery Production Process
YIHANG focuses on UAV battery pack development and manufacturing, including cell selection, battery assembly, electrical testing, and customized pack integration. Each battery pack is inspected through charging, discharging, voltage, current, and connection tests before delivery to ensure it meets the approved specifications.
FAQ
Q1: What are the advantages of LiPo battery packs for drones?
LiPo battery packs offer high energy density, lightweight construction, and high discharge capability. These characteristics make them suitable for UAV applications requiring strong power output and flexible battery design.
Q2: Can YIHANG customize LiPo battery packs for different drones?
Yes. Battery voltage, capacity, dimensions, connectors, C-rate, and BMS functions can be customized according to different UAV platforms and application requirements.
Q3: What cell configurations are available for drone LiPo batteries?
YIHANG provides various configurations including 3S, 4S, 6S, 8S, 12S, 16S, 18S, 24S, and 28S battery solutions. Custom configurations are also available for specific drone projects.
Q4: Can LiPo battery packs be used for industrial drones?
Yes. LiPo battery packs are commonly used in agricultural drones, inspection UAVs, mapping drones, and other industrial platforms where lightweight design and high-rate discharge performance are required.
Q5: Can the battery include a BMS system?
Yes. Standard configurations can be supplied without BMS, while customized solutions with BMS, CAN, RS485 communication, and battery monitoring functions are available according to system requirements.
