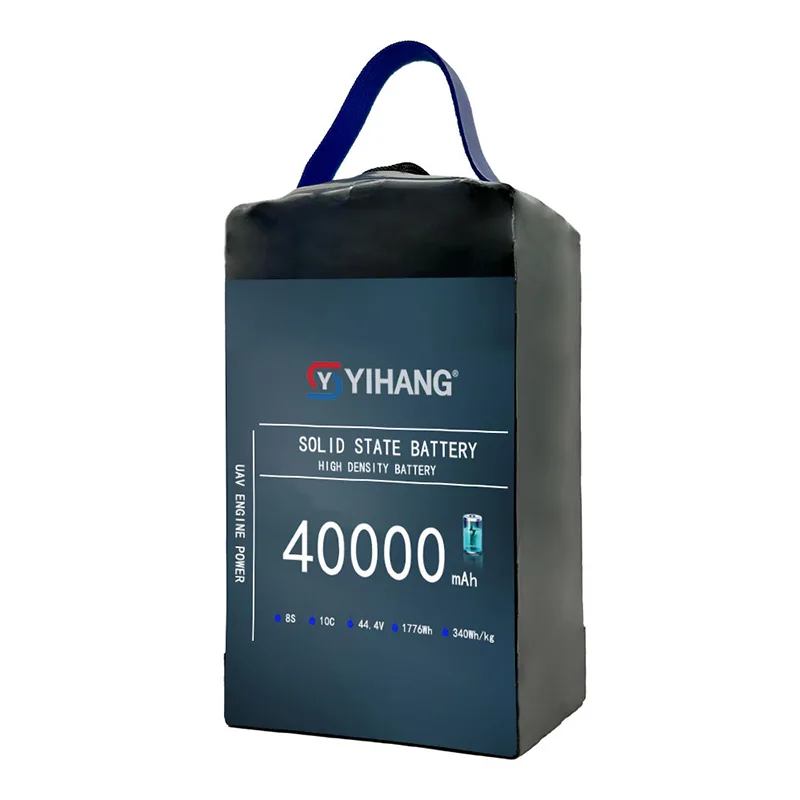

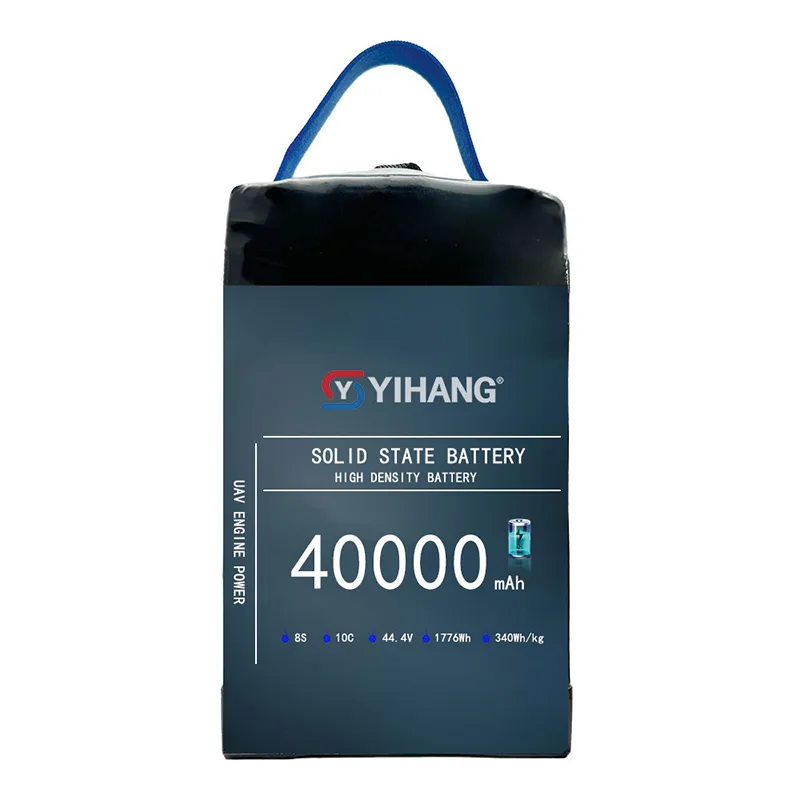

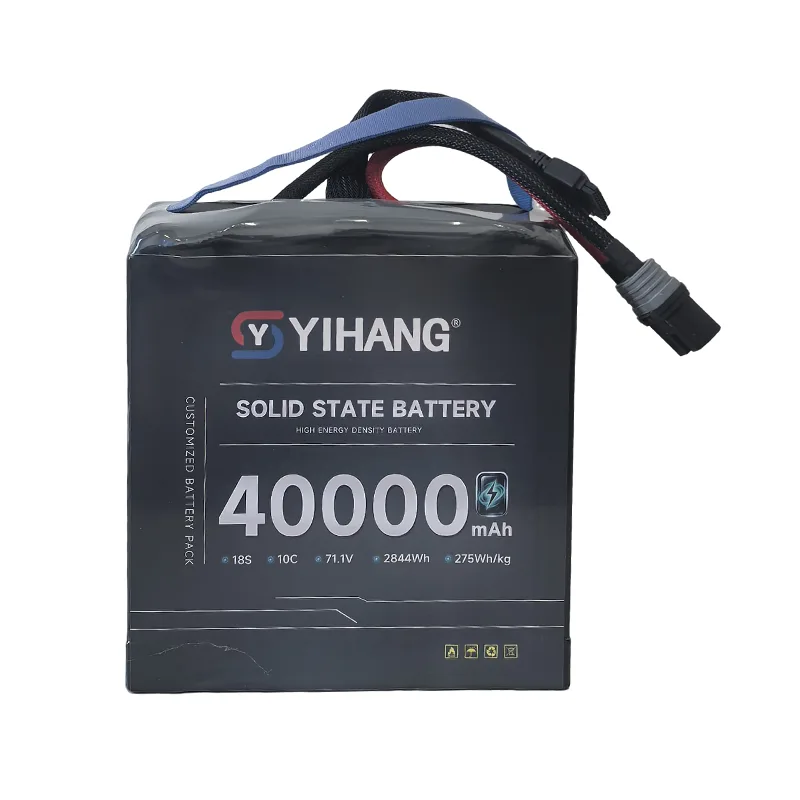

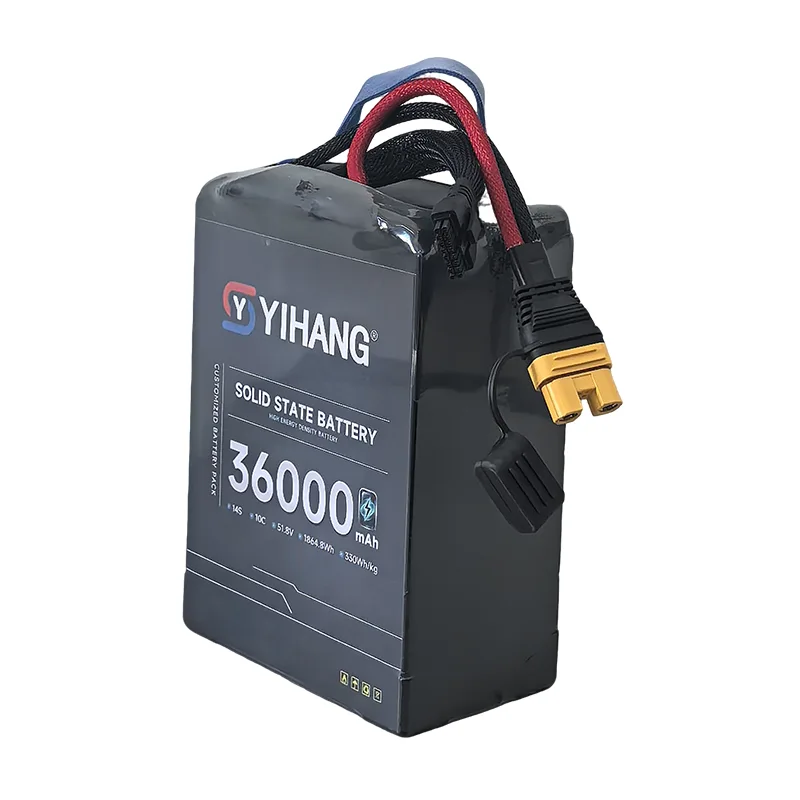

Mapping Drone Battery for Survey UAV

The Mapping Drone Battery for Survey UAV offered by leading China manufacturer YIHANG is suited to long-duration hover, cruise, and sensor operation, with configurable voltage, capacity, dimensions, connectors, and C-rate. Optional BMS integration with CAN or RS485 communication is also available for UAVs that require battery status monitoring and system-level data transmission.

Battery Parameter

Built-in Smart BMS with LED Indicator Panel — Real-time Monitoring, Multi-layer Protection, and Full Lifecycle Data Management.

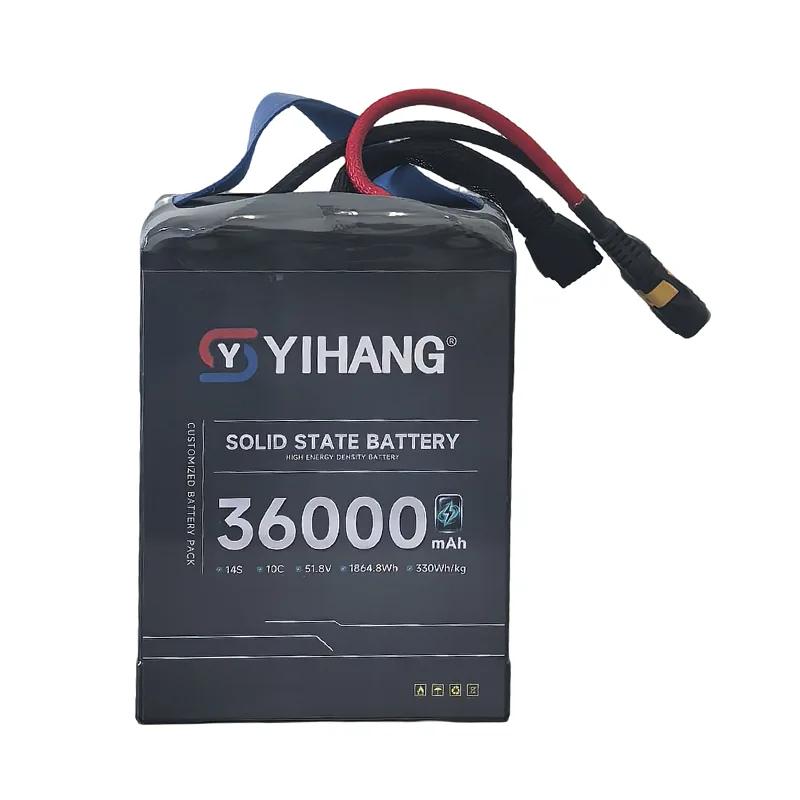

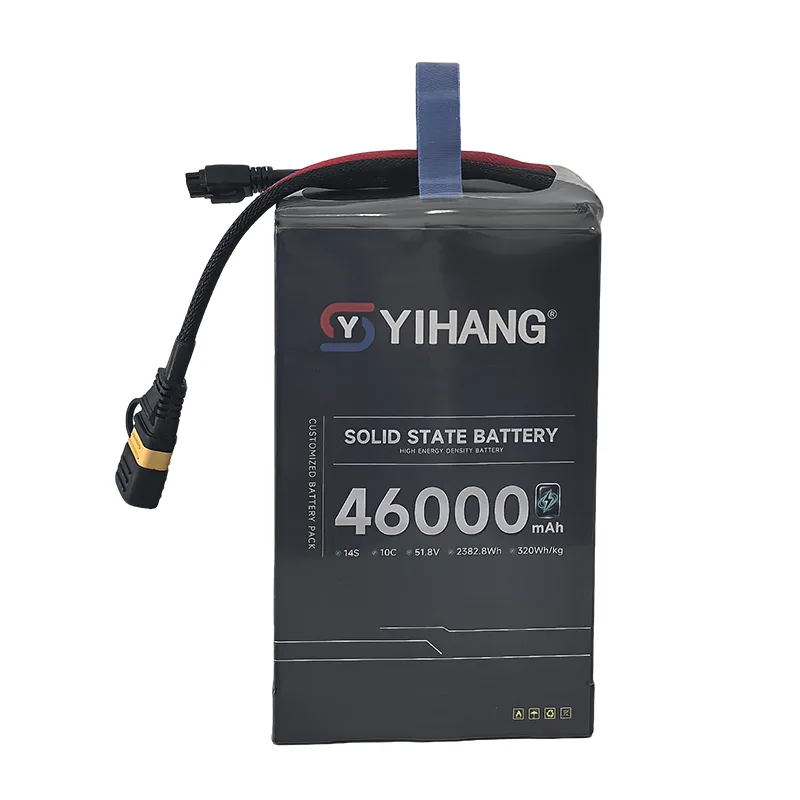

Datasheet of Different Batteries

Product Advantages

Stable Power for Extended Survey Missions

The battery is configured for the steady power requirements of mapping and surveying operations, helping maintain consistent output during extended hover, cruise, and sensor-use periods.

High Specific Energy

High-density LiPo cells provide a useful balance between battery weight and available energy, helping UAV operators manage the trade-off between flight endurance and payload.

Low-Rate Continuous Discharge

With a 3C continuous discharge rate and 10C peak discharge rate, the reference configuration is suited to survey platforms that require sustained output together with short periods of higher power demand.

Flexible Battery Configuration

Voltage, capacity, dimensions, C-rate, connectors, and charging interfaces can be configured according to the UAV platform, battery compartment, and mission requirements.

Optional Smart BMS

A smart BMS can be integrated when the UAV requires battery monitoring, cell management, or communication with compatible flight-control and ground systems through CAN or RS485.

Product Applications

The Mapping Drone Battery for Survey UAV is suitable for UAV platforms where stable power, low battery weight, and extended operating time are important.

Mapping and Survey UAVs

Suitable for aerial mapping platforms used with cameras, LiDAR, photogrammetry systems, and other surveying payloads.

Geographic and Terrain Survey

The configurable battery capacity and voltage support UAVs used for terrain mapping, geographic surveys, and remote-area data collection.

Infrastructure Inspection

Can be configured for inspection drones carrying cameras, thermal sensors, and other onboard equipment during extended flight missions.

Fixed-Wing and Multi-Rotor UAVs

Different battery configurations can be developed for fixed-wing and multi-rotor platforms according to their power demand, battery space, and operating profile.

Why Choose YIHANG for Your Survey Battery

Survey-Oriented Battery Configuration

YIHANG configures battery voltage, capacity, discharge characteristics, and dimensions according to the flight and payload requirements of survey UAVs.

Multiple Reference Models

Existing battery configurations provide different voltage and capacity options for UAV evaluation, with customized versions available for specific platforms.

Optional BMS and Communication

CAN and RS485 communication can be integrated with the BMS when battery data needs to be exchanged with compatible UAV or ground systems.

Testing Before Delivery

Battery packs are checked for voltage, charging and discharging performance, capacity, and electrical connections according to the approved technical requirements.

Configuration Process

1. UAV Platform Requirements

Confirm the drone type, battery compartment dimensions, payload, propulsion system, and installation method.

2. Electrical Requirements

Define required voltage, capacity, continuous current, peak current, and target flight duration.

3. Battery Configuration

Select the cell configuration, capacity, dimensions, connectors, and charging interface according to the UAV requirements.

4. BMS and Communication

Where required, configure BMS functions, protection parameters, and CAN/RS485 communication.

5. Battery Validation

Verify the battery's electrical performance, physical fit, and system compatibility before production.

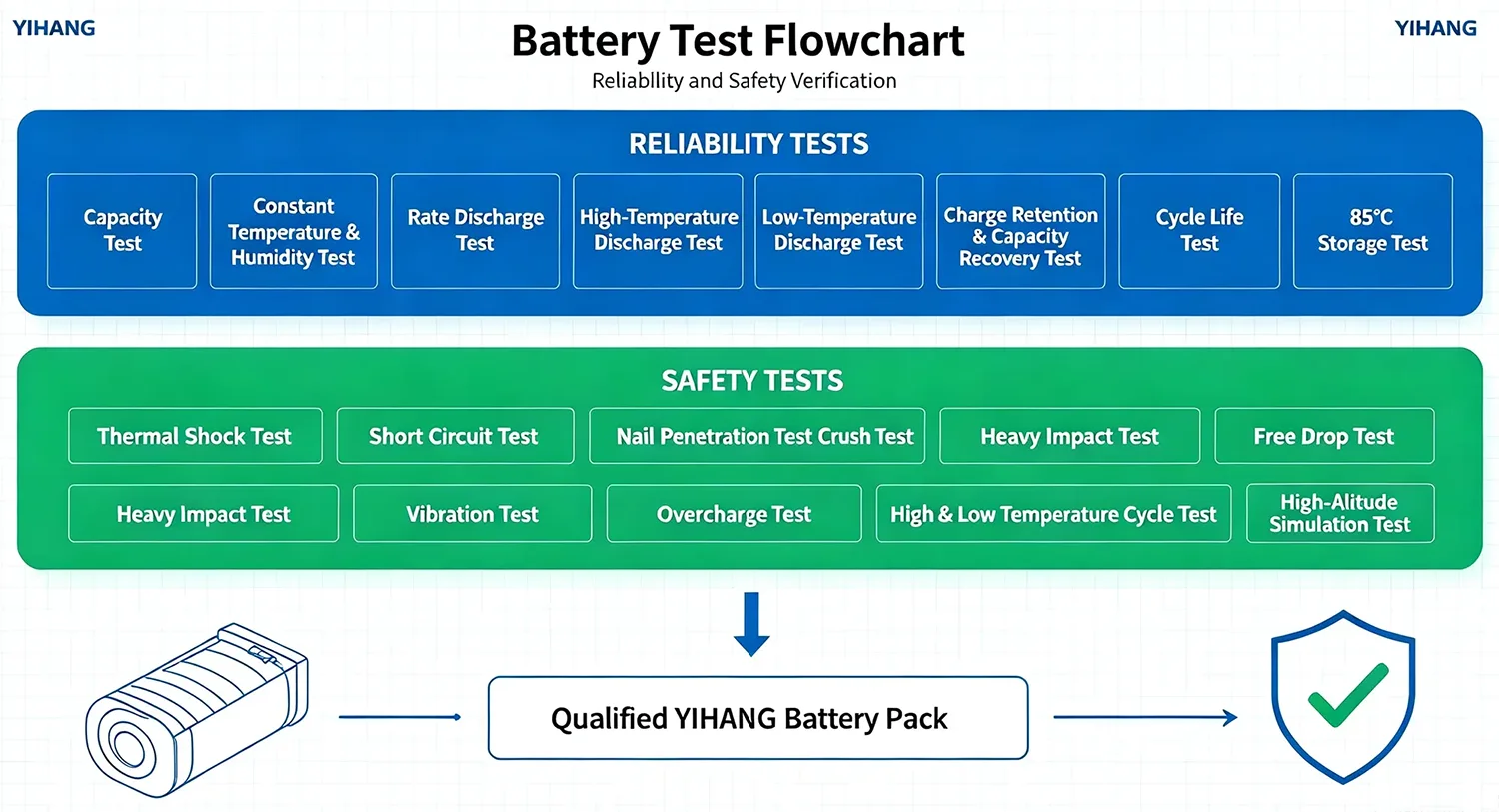

Battery Quality Control

Survey battery packs are checked at different stages to verify consistency with the approved specification.

Cell Inspection

Voltage, capacity, internal resistance, and cell consistency are checked according to the battery configuration.

Pack Assembly Inspection

Cell connections, insulation, wiring, connectors, and BMS installation are inspected during assembly.

Electrical Testing

Finished packs are tested for voltage, charging and discharging performance, capacity, and other agreed electrical parameters.

Final Inspection

Each completed battery pack is checked against the approved technical requirements before shipment.

FAQ

Q1: What makes a survey drone battery different from a standard drone battery?

Survey UAVs often operate for longer periods while carrying cameras, LiDAR, or other sensors. A survey battery therefore needs to balance energy capacity, battery weight, and stable power output rather than focusing only on short-duration peak discharge.

Q2: What discharge rate is available for this survey battery?

The reference configuration provides a 3C continuous discharge rate and a 10C peak discharge rate. Final discharge characteristics can be configured according to the UAV's power requirements.

Q3: Can the battery be used for both fixed-wing and multi-rotor survey UAVs?

Yes. Battery voltage, capacity, dimensions, and discharge characteristics can be configured according to the operating profile and electrical requirements of fixed-wing or multi-rotor platforms.

Q4: Can YIHANG customize the battery size and capacity?

Yes. Battery dimensions, capacity, voltage, C-rate, connectors, charging interfaces, and other supported battery parameters can be customized according to the UAV platform.

Q5: Is a BMS available for the survey battery?

Yes. BMS integration is available as an option. CAN and RS485 communication can also be configured for compatible UAV flight-control, ground-station, or battery-monitoring systems.

Q6: What information is needed to configure a survey UAV battery?

Key requirements include the UAV model or platform, battery compartment dimensions, required voltage, capacity target, continuous and peak current demand, connector type, payload, and expected flight duration.
