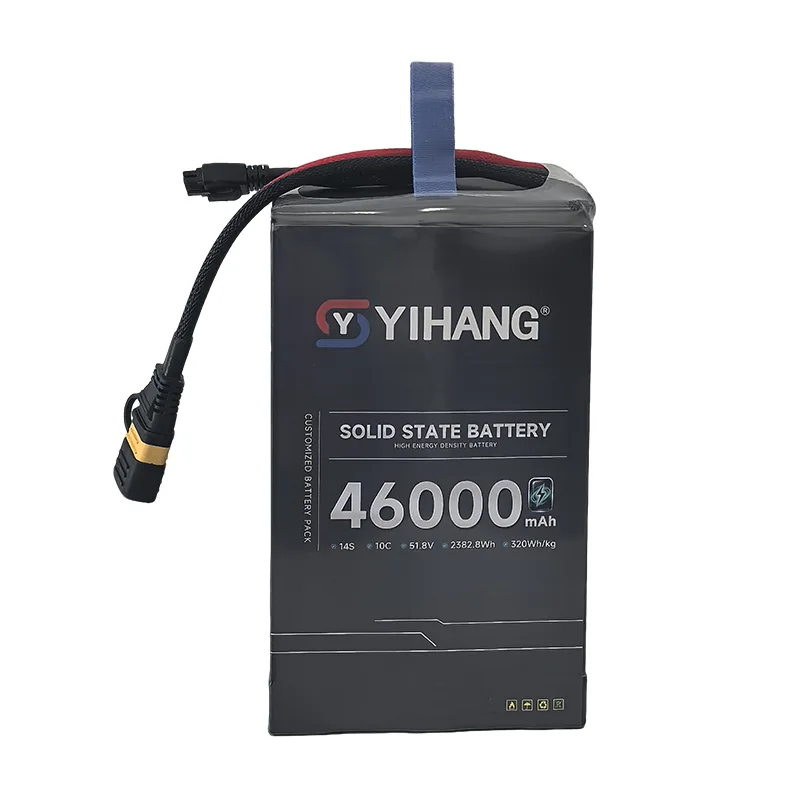

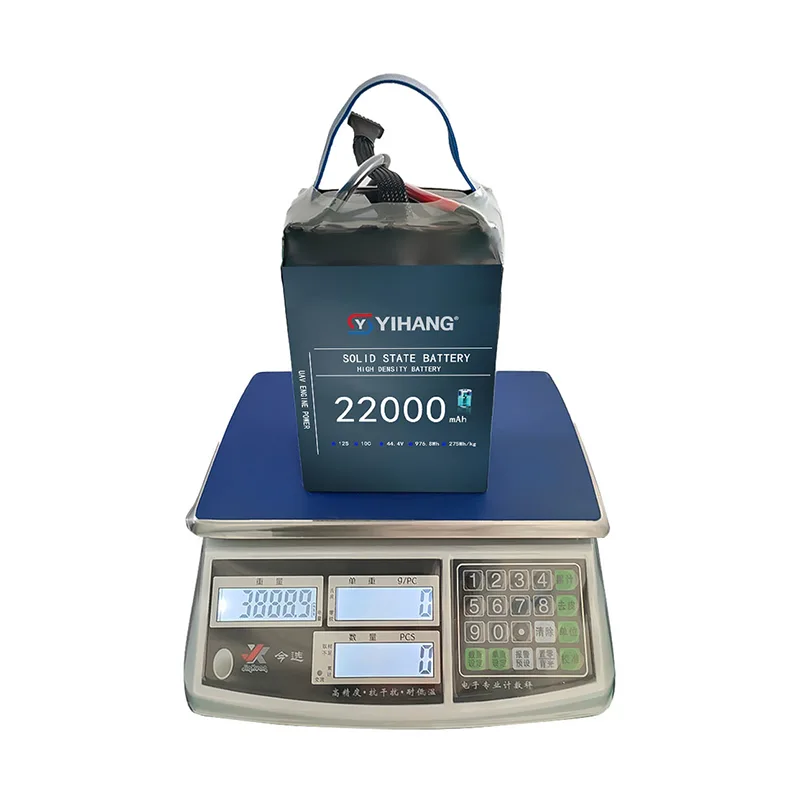

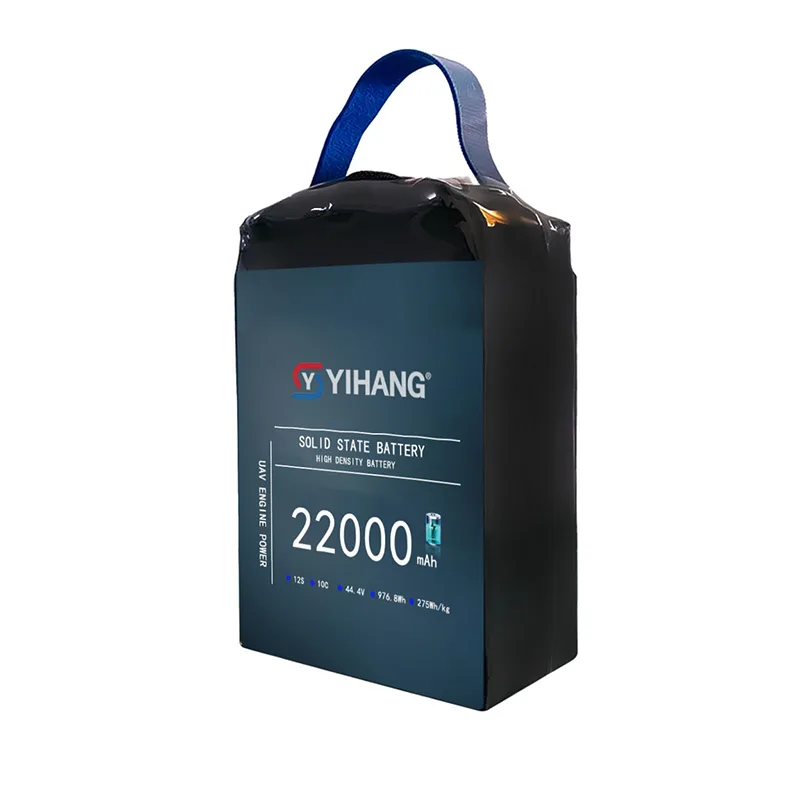

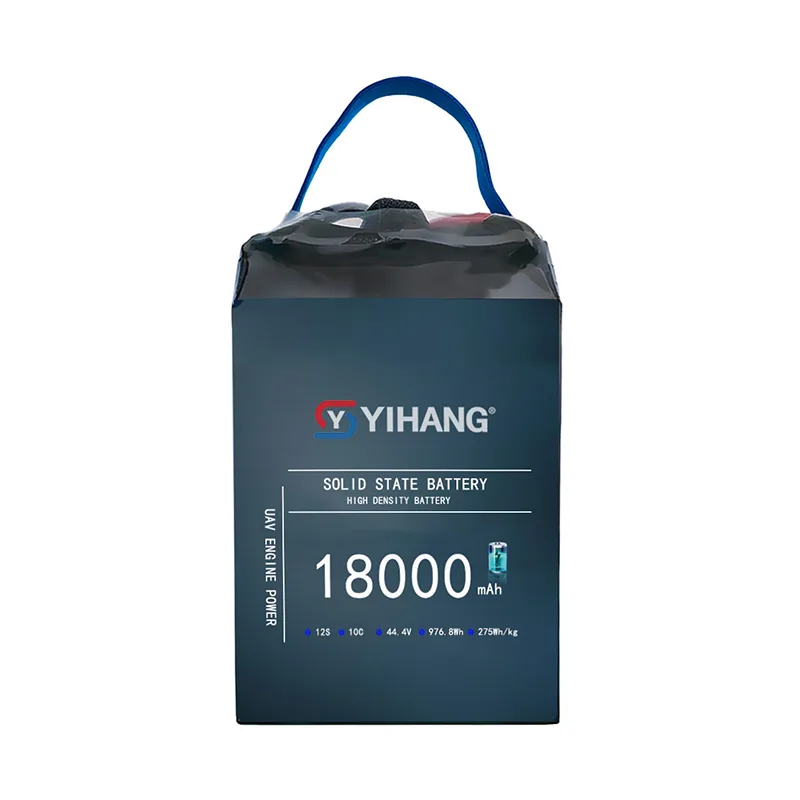

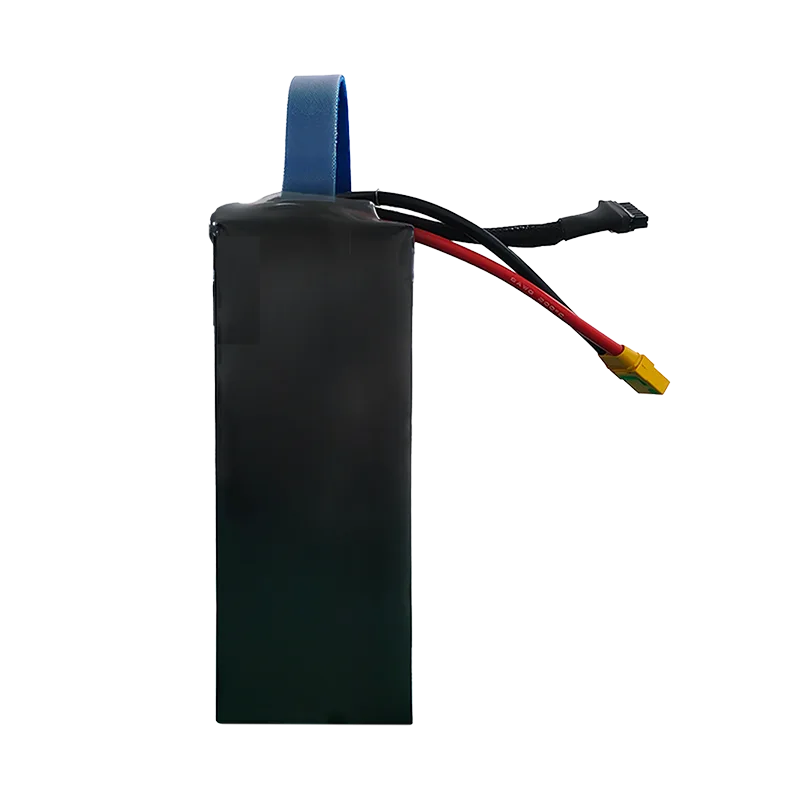

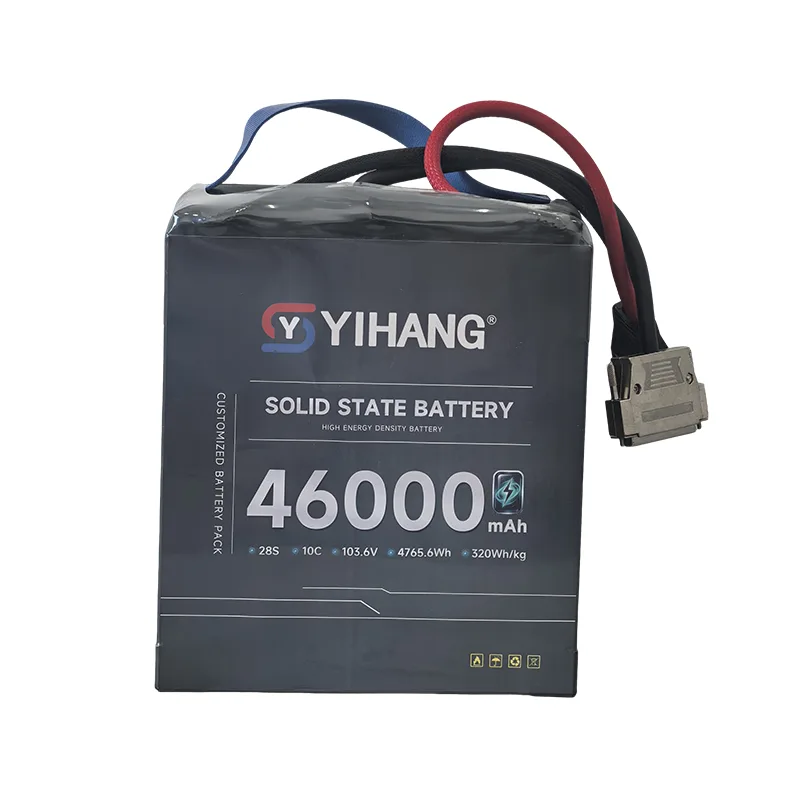

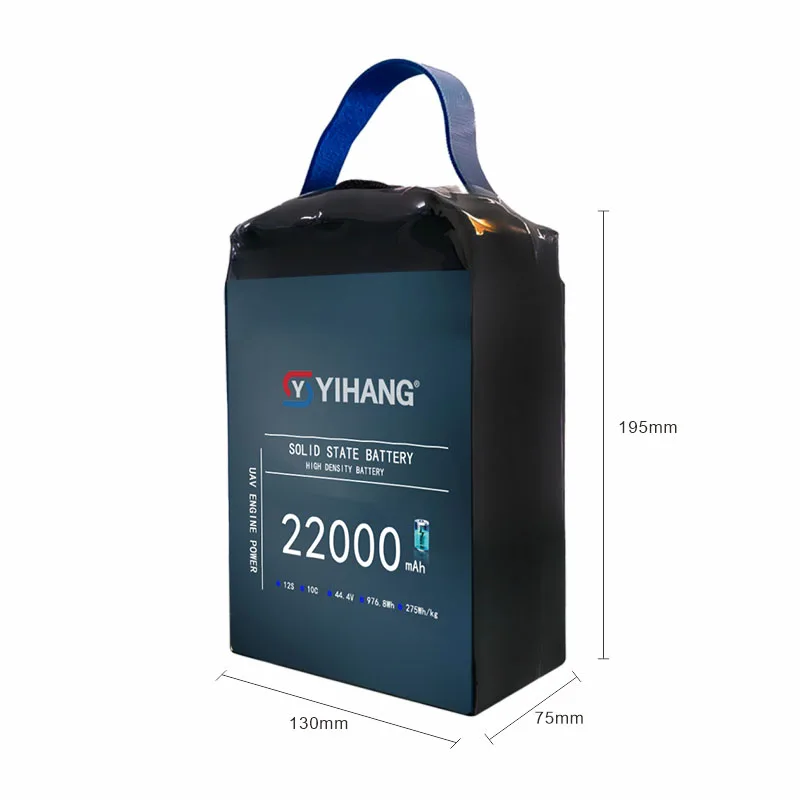

Semi-Solid State Drone Battery Pack

Unlike high-density liquid LiPo batteries that suffer from severe voltage sag under load, YIHANG factory’s Semi-Solid State Drone Battery Pack maintains exceptionally flat discharge curves during high-throttle maneuvers.

Semi-Gel Electrolyte Matrix: Reduces internal resistance (Ri) and eliminates free liquid, mitigating thermal runaway and swelling risks under continuous high-current discharge.

Sustained Power Output: Prevents voltage drop at high SOC/load transitions, ensuring stable motor thrust from launch to landing.

Ruggedized Structural Housing: Encased in an aluminum alloy enclosure to maximize impact resistance and heat dissipation without adding redundant dead weight.

Integrated Smart BMS: Continuously monitors per-cell voltage, current, internal resistance, and multi-point temperatures via real-time CAN Bus or RS485 communication.

Battery Parameter

Built-in Smart BMS with LED Indicator Panel — Real-time Monitoring, Multi-layer Protection, and Full Lifecycle Data Management.

Datasheet of Different Batteries

More models

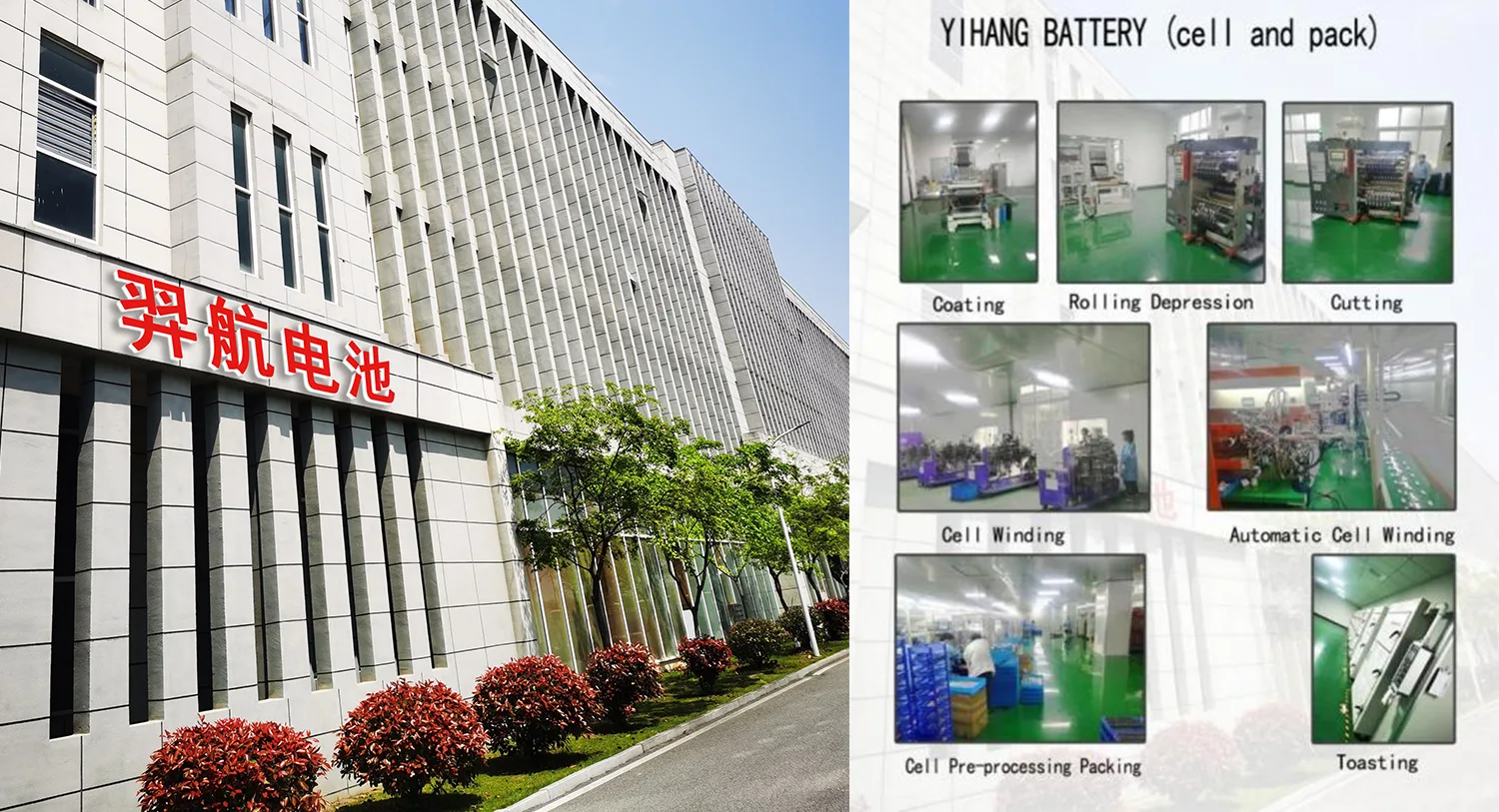

Production & Customization Process

Why Choose YIHANG for Your Semi-Solid Battery

Semi-Solid Battery Development YIHANG focuses on semi-solid battery pack development for industrial UAV applications requiring higher energy density and controlled high-current output.

Smart BMS Integration BMS hardware, firmware configuration, balancing, protection, and CAN/RS485 communication can be adapted to the target UAV system.

Flexible Engineering Voltage, capacity, dimensions, C-rate, connectors, and communication parameters can be configured around the aircraft rather than a fixed battery format.

Reference Configurations Existing 6S–28S configurations provide starting points for UAV evaluation and application development.

Application-Based Validation Battery specifications and BMS functions can be checked against the agreed electrical, mechanical, and communication requirements.

Key Advantages

Higher Specific Energy

The semi-solid cell platform provides a higher specific-energy option for UAV applications where battery weight and available flight energy need to be balanced.

Stable High-Load Output

The battery is designed for high-current operation with low internal resistance characteristics to help reduce voltage drop during demanding flight loads.

Improved Thermal Stability

The semi-solid electrolyte structure is designed to reduce electrolyte movement and support more stable battery behavior under elevated operating temperatures.

Aluminum Alloy Housing

The rigid housing adds mechanical protection to the battery pack while providing a defined structure for UAV installation and heat dissipation.

Integrated Smart BMS

The BMS supports cell voltage monitoring, current and temperature monitoring, balancing, protection functions, SOC/SOH estimation, and CAN/RS485 communication.

Flexible UAV Configuration

Battery voltage, capacity, dimensions, connectors, C-rate, communication protocol, and BMS parameters can be configured for different UAV platforms

Product Application

The Semi-Solid State Drone Battery Pack is suitable for UAV platforms where energy density, high-load output, and battery monitoring are important.

Heavy-Lift VTOL UAVs

Provides configurable voltage and capacity options for UAVs operating with higher payload requirements.

Mapping and Survey UAVs

Suitable for platforms carrying LiDAR, cameras, multispectral sensors, and other surveying payloads.

Agricultural UAVs

Can be configured for spraying and other agricultural drones with high-current propulsion requirements.

Inspection UAVs

Supports industrial inspection platforms requiring battery status monitoring and communication with onboard systems.

Specialized Industrial UAVs Battery size, voltage, capacity, connectors, and BMS parameters can be adapted to dedicated UAV platforms.

Customization Services (OEM/ODM)

We offer end-to-end custom engineering for specialized UAV platforms, accommodating tailored requests with low MOQ constraints:

Electrical Configuration: Voltage from 6S to 28S, capacity from 4000mAh to 60000mAh, and discharge characteristics according to the selected cell configuration.

Mechanical Configuration: Battery dimensions, housing structure, connectors, wiring, and installation interfaces can be adapted to the UAV.

BMS Configuration: CAN/RS485 communication, protection thresholds, balancing parameters, and other supported BMS functions can be configured.

Branding: Housing logo printing, laser marking, and other supported identification options are available.

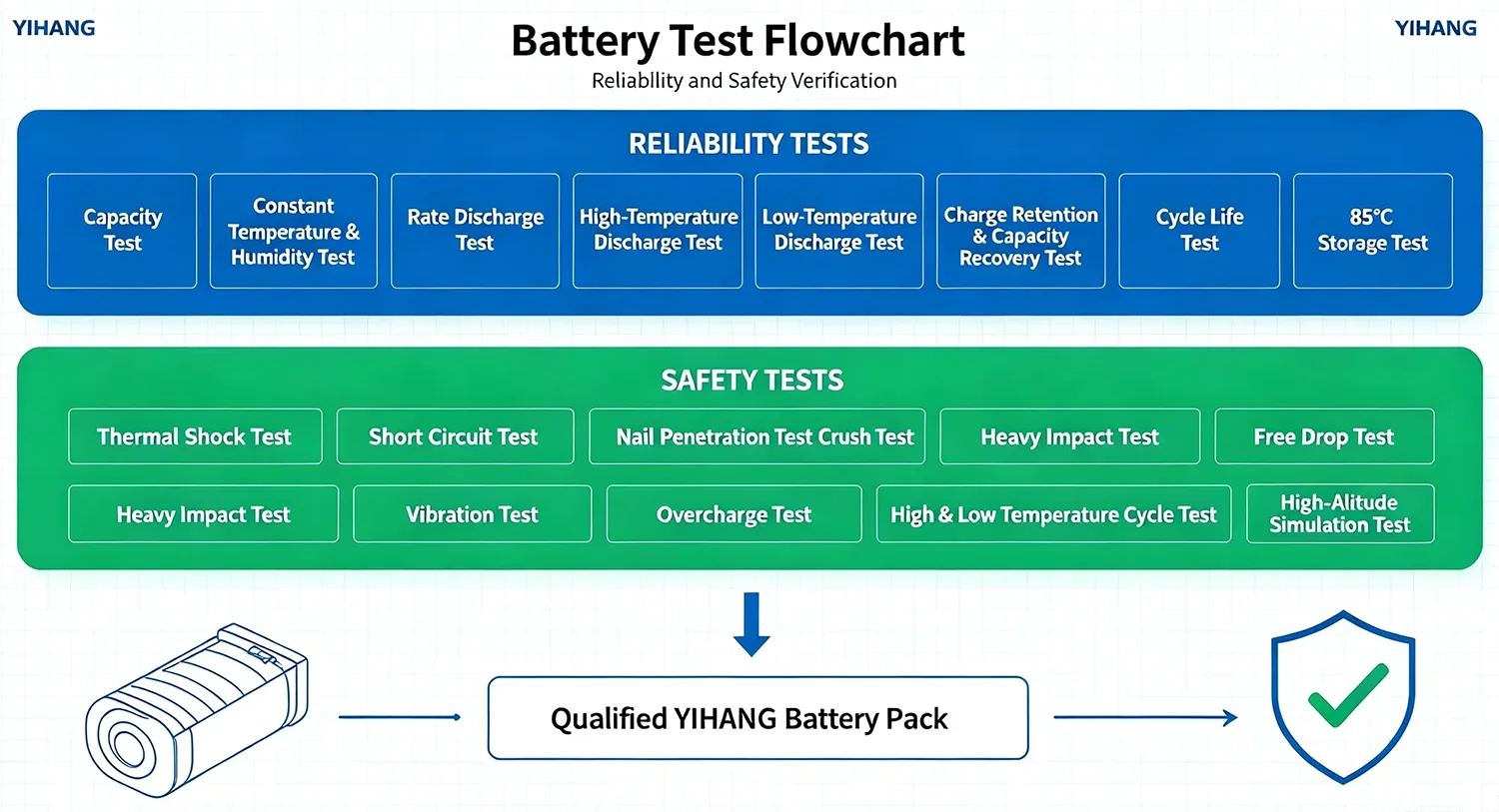

Quality Control & Inspection Standards

Cell Screening Cell

capacity, internal resistance, voltage, and consistency are checked according to the battery specification.

Pack Assembly Inspection

Cell connections, insulation, wiring, connectors, and BMS installation are inspected.

BMS Functional Testing

Monitoring, balancing, protection, and communication functions are verified.

Electrical Testing

Voltage, capacity, discharge performance, and other agreed electrical parameters are checked.

Final Inspection

Finished battery packs are inspected against the approved specification before shipment.

FAQ

What is a Semi-Solid State Drone Battery Pack?

It is a UAV battery pack using a semi-solid electrolyte cell structure together with an integrated BMS. The configuration is intended for applications requiring a combination of energy density, high-rate output, and battery management.

What voltage configurations are available?

The listed configurations cover 6S to 28S, including 12S, 14S, 16S, 18S, 24S, and 28S reference models.

What capacity range is available?

Reference models range from 4000mAh to 50000mAh, while customized capacities from 4000mAh to 60000mAh can be evaluated according to the battery configuration.

Does the battery support CAN and RS485?

Yes. CAN and RS485 communication are available for compatible UAV flight-control, ground-station, and monitoring systems.

How many cycles can the battery achieve?

The stated reference is 1000 cycles to 80% initial capacity under the specified test conditions: 25°C ±2°C, 1C charge, 2C discharge, and 100% depth of discharge. Actual cycle life depends on operating and charging conditions.

Can the battery dimensions and connectors be customized?

Yes. Battery dimensions, connectors, wiring, voltage, capacity, C-rate, and BMS parameters can be configured for different UAV platforms.

Is the 220–400 Wh/kg figure for the complete battery pack?

The source specification should be confirmed before publication. If the figure refers to the cells rather than the finished pack, it should be presented as Cell Specific Energy rather than Battery Density.
